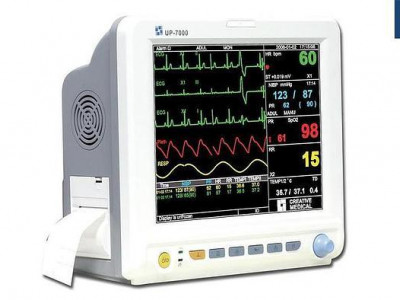

12.1 high resolution TFT color screen
3-channel ECG amplification
Arrhythmia analysis and ST segment analysis
Save up to 2000 groups of data and 24 hours of ECG traces
Simultaneous display of 9 ECG tracks
Protection against defibrillation interference
Adult/Pediatric Measurement Mode
Visual and audible alarms
Built-in rechargeable battery
Built-in thermal printer
Technical specifications
NIBP monitoring - oscillometric
• Measuring range (systolic pressure): [Adult: 40 ~ 275 mmHg] [Pediatric: 40 ~ 200 mmHg] [Neonatal: 40 ~ 135 mmHg]
• Measuring range (diastolic pressure): [Adult: 10 ~ 210 mmHg] [Pediatric: 10 ~ 150 mmHg] [Neonatal: 20 ~ 165 mmHg]
• Measuring range (mean arterial pressure): [Adult: 40 ~ 135 mmHg] [Pediatric: 10 ~ 95 mmHg] [Neonatal: 20 ~ 110 mmHg]
TEMP monitoring
• Measuring range: 21.0°C ~ 50.0°C ± 0.2°C
• Response time: = 150 sec
SpO2 and pulse monitoring
• SpO2 measurement range: 30% ~ 100%
• PR measurement range: 0 bpm ~ 250 bpm
ECG monitoring
• Heart rate range: ± 0.5 mVp ~ ± 5 mVp
• Heart rate display range: 15 bpm ~ 350 bpm
RESP Monitoring
• Measurement method: transthoracic impedance
• Monitoring range: 0 rpm ~ 120 rpm, ± 5% o ± rpm, whichever is higher
Other technical characteristics
• Power supply: 100 ~ 240 Vac, 50/60 Hz
• Consumption:
