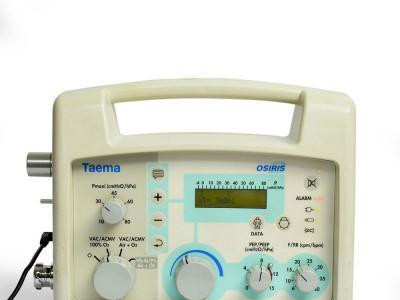

Versatile respirator.
• Small dimensions (250 x 210 x 170 mm)
• Weight 5 kg with carrying bag.
The shell is made of ABS "shock" with integrated carrying handle.
VENTILATION MODES:
Controlled ventilation (VAC), volume-controlled assisted ventilation (ACMV), pressure-assisted spontaneous ventilation (VS-AI/PS).
VAC ACMV
FiO2 adjustable either in pure oxygen or in oxygen/air mixture (60%). Tidal volume (VT) adjustable from 100 to 1500 ml. Frequency adjustable from 6 to 40 c/min. I/E ratio adjustable from 1/1 to 1/3. The integrated Positive Expiratory Pressure (PEEP) is adjustable from 0 to 10 cm H2O.
In ACMV mode, a pre-set tidal volume is insufflated into the patient circuit with each inspiratory effort, using a constant flow rate. In case of apnea, the device will operate on preset safety parameters.
VS-AI/PS
An inspiratory support (constant positive pressure), adjustable from 5 to 40 cm of H20, is obtained with each inspiratory effort. The Positive Expiratory Pressure is generally set between 7 and 10 cm H2O.
OPERATING PRINCIPLES:
The oxygen supply pressure is 3.5 bars ( /- 0.7) and the device's own consumption is approximately 1l/min. The internal batteries, essential for powering the electronic circuit, have an autonomy of 10 hours and recharge in 10 to 14 hours. Osiris 2 can be connected to the mains.
