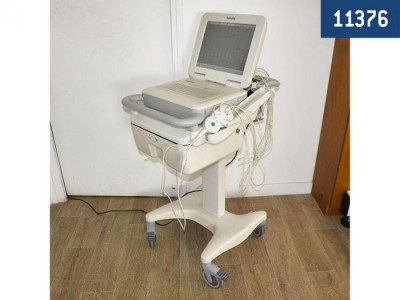

PHILIPS PAGEWRITER TC70 ECG ELECTROCARDIOGRAM
Technical sheet
Simultaneous acquisition of leads: 18 leads maximum
Full Recording: 20-minute 16-lead history and 10-second full ECG report
Scheduled ECG: Support for pharmaceutical stress test protocols
Report Storage/Transfer: High fidelity recording at 500 Hz over 10 seconds for up to 16 leads in XML format (published schema)
Philips DXL 18-lead ECG algorithm
Interpretive Statements: Over 600 interpretive statements with integrated pediatric analysis
Electrode Wire Reversal Detection: Electrode positioning software for detecting 20 wire reversal possibilities
Removing boundary statements: Three configurable settings
Reasons: Possible selection of reasons for all diagnostic statements
User interface
Touchscreen: 3-step operation/pop-up application/5-wire resistive touchscreen
Keyboard: Standard 65-key fully alphanumeric keyboard with special character support
Screen: 15” (38 cm) TFT
Aids in the diagnosis of STEMI-type infarctions
ST vector graph: Two polar representations of the ST segment in the frontal and transverse planes
Critical values: Highlighting 4 conditions requiring immediate clinical attention
AST (D02)
Query and retrieval of patient administrative information: Ability to automatically retrieve all patient administrative information
Network-available features (require IntelliSpace ECG)
Centralized management of time indications: Possibility of synchronizing the time with the main network clock
Review Requests: Ability to configure reminder rules for electrocardiograph task lists
Signal quality indicators
Contact fault detection: The anatomical diagram of the leads indicates the location and labeling of each disconnected or loose wire/electrode
Lead Color: Four colors indicating the signal quality of the curve
Electrode Wire Reversal Detection: Electrode positioning software for detecting 20 wire reversal possibilities+J603
Heart rate
Continuous display of the patients heart rate
Print Preview: Full screen preview of the full 16-lead report before printing
Training
Application Help: Built-in graphical help screens for main functions
Tutorial: Interactive and dynamic PC animation covering all important clinical features
Signal processing
Patient Interface Module: Remotely controlled digital module with microprocessor, providing 5 μV resolution
Pre-processing filters
Mains interference: 50 to 60 Hz
Signal Processing: Artifact Rejection and Baseline Drift
Presentation Filters - 10 Second Reports
Low-pass filter: 40/100/150 Hz
High-pass filter: 0.05/0.15/0.5 Hz
Screen
Size: 30.4 x 22.8 cm color LCD touchscreen with backlight
Resolution: 1024 x 768 pixels resolution
Presentation Filters - Rhythm
High-pass filter: 0/05/0.15 Hz
Low-pass filter: 40/100/150 Hz
Patient Connections
Patient Interface Module (PIM): Remote, microprocessor-controlled digital module
Presentation Filters – Rhythm
Low-pass filter: (40 Hz, 100 Hz, 150 Hz)
Printer
Type: High-resolution digital printer using thermal paper
Resolution: 200 dpi (voltage axis) by 500 dpi (time axis) at 25 mm/s
Physical characteristics
Dimensions: 330 x 405 x 135 mm
Weight: 13 kg
Connectivity
LAN network
IEEE 802.3 10/100 Base‑T Ethernet connection via RJ45 connector (standard)
Wireless connection (D21)
Optional software required for wireless LAN connection.
Wireless Authentication
Wireless LAN connection compatible with 802.11 a/b/g/n.
Internal storage
Up to 200 ECGs in internal flash memory
External storage
Up to 200 ECGs per USB stick (optional)
