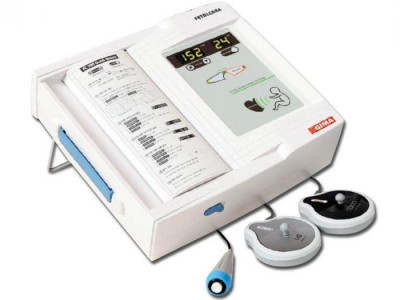

Economical mono cardiotocograph
Extreme sensitivity of the Doppler ultrasound
High precision with 1 MHz frequency
Automatic/manual fetal movement detection
10 min to 1 h automatic fetal responsiveness test
Printing data
Printing the CTG analysis
A4 paper with perforation line
Usable standard thermal fax paper
Easy to use
1-touch operation, easy to set up
Alarm (high/low RCF)
Software updates via the Internet
Print speed 1, 2, 3 cm/min
Technical specifications
Dimensions 296x92.5xh 305.5 - approx. 2.9kg
7-segment LED display - 2 channels (RCF, UC)
Thermal matrix printer printing speed: 1, 2, 3 cm/min / paper advance function
Adapter input: 100-240 VAC, 50-60 Hz, 1.2 A / output: 18 VDC, 2.5 A
External RS-232C connection
Fetal heart rate
Input signal: pulsed Doppler ultrasound
Ultrasonic frequency: 1.0 Mhz, 975 Khz
Ultrasonic power:
