DIGITAL MOBILE RADIO, STEPHANIX (made in France) MOVIX 4E WITH A FLAT PANEL CANON 701C 36X43
AS NEW CONDITION (commissioned February 2022)
Easily transportable (hospitals, retirement homes, ambulances, home, war zones, etc.).

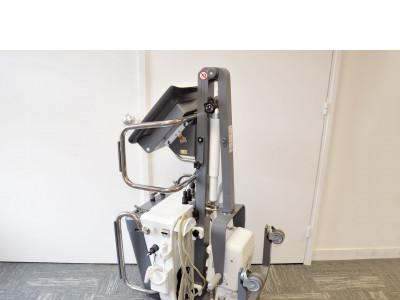

Movix 4/8 Dream is a compact 94 kg digital X-ray mobile, equipped with a
4 kW monobloc high-frequency generator. It is suitable for bedside images and for performing examinations outside
hospital sites (retirement homes, home ambulances, war zones, etc.).
COMPACTNESS
• It can move in small spaces and make a U-turn in less than 1m², thanks to its size,
its pneumatic rear wheels and its folding front fork.
• Its compactness linked to its small dimensions of 105 x 78 x 138 cm folded, allows it to be stored and optimize the available space,
to free up passage areas, or to transport it to external interventions (military, humanitarian, concerts, etc.).
• Its foldable arm system with a jack provides maneuverability and safety when positioning and storing it.
Designed for field operations, a simple power outlet is enough to power it to take the image.
ERGONOMICS
movix 4/8 dream
COMFORT OF USE
The user can control and modify the acquisition parameters (kV, mA, mAs, etc.) from the secondary console on the X-ray unit.
FLAT SENSORS
It is equipped with a CANON WIFI 710C flat sensor (35×43 cm, 2.3 kg).
It has a thickness equivalent to the cassettes and can be used to perform specific procedures such as femoral-patellar parades and weight-bearing feet. The wifi detector can be shared between several rooms and mobiles, to cover all routine procedures.
ACQUISITION
Its touchscreen interface console provides access to patient data recording, the choice of anatomical protocols and acquisition parameters, image preview for validation, and its processing before sending over the network.
Each procedure benefits from its own preset parameters such as acquisition constants.
As part of information sharing, Movix 4/8 DReam systems are equipped with:
• USB ports
• Ethernet outputs
• DICOM Media Export compatibility.
DOSE MANAGEMENT TOOLS
• Dedicated pediatric protocols.
• Location for additional filters.
• Surface Dose Product (PDS) indicated for each image.
• DICOM MPPS and RDSR functions: automatic sending of examination data such as the
Surface Dose Product and acquisition parameters
