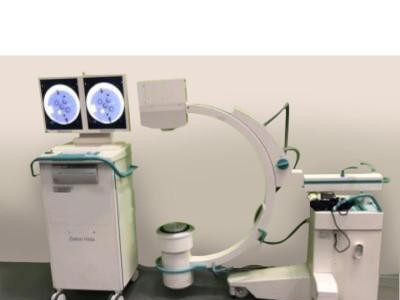

BRILLIANCE AMPLIFIER STAND
DIMENSIONS AND MECHANICS
• Motorized vertical stroke: - 43 cm - 63 cm (option only for 23 cm ii)
• Orbital rotation: -90 ° / + 25 ° -90 ° / + 45 ° (option only for 23 cm ii)
Brakes:
• Patented steering and braking lever, with parallel movement of the mobile support in all directions
X-RAY GENERATOR
• Generator type:
- 20 kHz high frequency
- microprocessor controlled
Operating Values:
• Digital radiography (shooting): 40 to 110 kV, 8 mA • Radiography: 40 to 110 kV, 20 mA
Output:
- 1.14 million HU
• Option:
- with water cooling (active cooling) 3,500 KJ - equivalent to 5 million HU
Filtration:
• Total filtration: ≥ 4 mm Al equivalent • Additional filtering: 0.06 mm Cu
Collimator system
• Iris collimator: - 23 cm ii .: diam. 50 -230 mm - 31 cm ii .: diam. 50 -310 mm
• Radiation-free virtual collimator display
IMAGE INTENSIFIER
• Conversion factor: 240 Cd m-2 / mR s-1 • Anti-dispersion grid: Pb 8/40, f0 90
15 cm II .:
• Central resolution 15-10 cm: 46-50 lp / cm • Contrast ratio: 20: 1
23 cm II .:
• Central resolution 23-15-10 cm: 52-58-68 lp / cm • Contrast ratio: 30: 1
31 cm II .:
• Central resolution 31-23-15 cm: 44-50-56 lp / cm • Contrast ratio: 22: 1
DIGITAL VIDEO CHANNEL
Digital video camera (high contrast, non-interlaced):
• Video amplifier bandwidth: 25 MHz • Video: CCIR / 625 lines
Overall resolution II/TV:
• 15 cm: 20 lp / cm 23 cm: 16 lp / cm 31 cm: 12 lp / cm
MONITORS
• Two high-resolution, high-brightness flat-panel monitors:
- Viewing angle (horizontal and vertical): 170 ° - Contrast ratio: 800: 1
DIGITAL IMAGE PROCESSING
Real-time image processing functions:
• Windows and steps
• Radiation-free digital image rotation and inversion
DSA Package (Option):
• Real-time DSA subtraction with re-masking capability
• Max. MSA Opacification sequence
• RSA road map
• Pixel shift / landmarking
• Digital measurement functions (distance / angle)
Cine Loop (Option):
• Sequential image storage and display - 1-8 frames/sec
- 12.5 and 25 frames/sec
• Cine loop start, stop and replay rate controls
CO2 Package (Option):
• Automatic image optimization when using negative contrast agent in DSA mode
Post-processing functions:
• image rotation
• windowing
• grayscale inversion
Digital memory:
• Storage capacity: 1000 images - option: 5000 images
Data organization:
• Patient-based data management with 16-image mosaic display
ARCHIVING
• Video printer
• 3.5" floppy disk
- storage capacity: 4 images - formats: DICOM, TIFF
• CD ROM
- storage capacity: 1000 images - formats: DICOM, TIFF
Networking:
• Ziehm NetPort (option):
DICOM 3.0 interface (RJ45 or FO connection) for digital network integration
• “Primary Capture” mode
• Available DICOM classes:
- Storage class incl. multi-frame capability and storage commitment
- Print class
- Media class
- Worklist Class incl. Modality performed, procedure step (MPPS)
- Class Request / Recovery
- Verification Class
POWER SUPPLY
• Class I equipment, Type B applied parts
WEIGHT
