The system was manufactured in September 2010.
Tube and Collimator replaced in 2017.

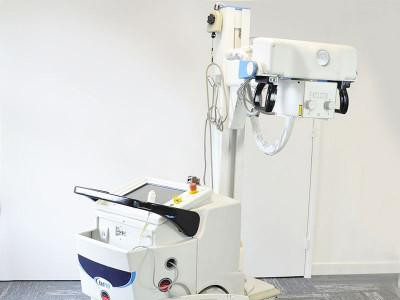

The RadPRO 40kW Digital Mobile X-ray System is equipped with a Canon CXDI-55 flat panel detector.
Mobile X-ray Room
Rather than bringing the patient to the X-ray room, you can bring the X-ray room to the patient's bedside with this mobile solution. Patients with limited mobility, clinical assistance or wheelchairs can be easily imaged. A large 17-inch touchscreen with integrated generator controls makes it easy for the technologist to select the exam to be performed and automatically program the generator based on the technique. With storage sections for everything the technologist may need during an on-site exam, the RadPRO 40kW Digital Mobile X-ray System is an invaluable resource.
Maneuvering and Positioning
A simple squeeze of the handle and the large 17-inch wheels powered by two independent motors easily navigate typical facility obstacles. Pressure-sensitive power steering simplifies the RadPRO 40kW digital mobile X-ray system while minimizing the effort required by the technologist. The telescoping X-ray tube arm provides an additional 6 inches of length to simplify bedside positioning. If necessary, the technologist can easily adjust the mobile unit with the fine-tuning positioning knobs located on the X-ray tube handles.
Generator/Power Supply
The high-frequency generator produces a maximum of 150 kVp, 500 mA and 500 mAs. Coupled with the standard 300 kHu X-ray tube, it is powerful enough to image most patients, including bariatric patients. With two battery systems, the RadPRO 40kW digital mobile X-ray system has independent power for exposure control and the drive system, reducing power consumption and promoting increased productivity.
Generator: Nominal kW: 40 kW
Battery / Capacitor
X-ray Tube
X-ray Tube Arm
Maximum Focal Distance to Floor 202.5 cm
Mobile Unit
Drive Motors (Standard): Two (2) independent drive motors, one for each wheel (forward and reverse)
Battery Systems: Two (2) independent systems, one for drive and one for exposure
