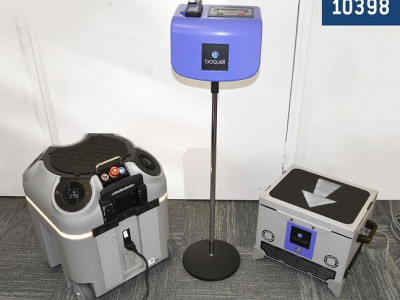

Hydrogen peroxide vapor bio-decontamination technology is effective on Multi-Drug Resistant Bacteria (MDB), viruses and spores, including Clostridium difficile, Acinetobacter, Aspergillus. APPLICATIONS: • Decontamination of rooms ranging from 5 to 200 m3 • Reduction in the rate of Healthcare Associated Infections (HAI) • Epidemic crisis management • Prevention of HAIs in intensive care units • Protection of immunocompromised patients • Reduction of Surgical Site Infections (SSI) • Bio-decontamination of the hospital pharmacy. TECHNICAL CHARACTERISTICS:
Dimensions and weight • Control module: 290 x 1040 x 220 mm - 4.6 kg • Vaporization module: 450 x 560 x 460 mm - 20 kg With two full bottles - 22 kg • Ventilation module: 480 x 330 x 340 mm - 10 kg • Trolley: 700 x 1250 x 1350 mm Terms of Use • Maximum capacity of H2O2 liquid: 2 x 950 ml (bottles with RFID tag) • Concentration of H2O2 liquid: Bioquell HPV-AQ 35% Storage between 4 and 25 °C • Temperature (in operation): 15° to 30° C for effective and reproducible decontamination. • The Bioquell BQ-50 can start a cycle at 35°C max (starting temperature) • Sound power at 1 m: 68dB (A) • Wireless communication: 2.4 GHz ISM bands, 16 channels (IEEE802.15.4 channels 11 to 16) Electrical power • Control module: 100 - 240 V single-phase 50/60 Hz - 0.4 A 0.006 kW • Vaporization module: 230 V - single-phase 50/60 Hz - 7.5 A 120 V - single-phase 50/60 Hz - 15 A 1.8 kW • Ventilation module: 100 - 240 V single-phase 50/60 Hz 3.1 A 0.32 kW • Power supply: Installation category II
