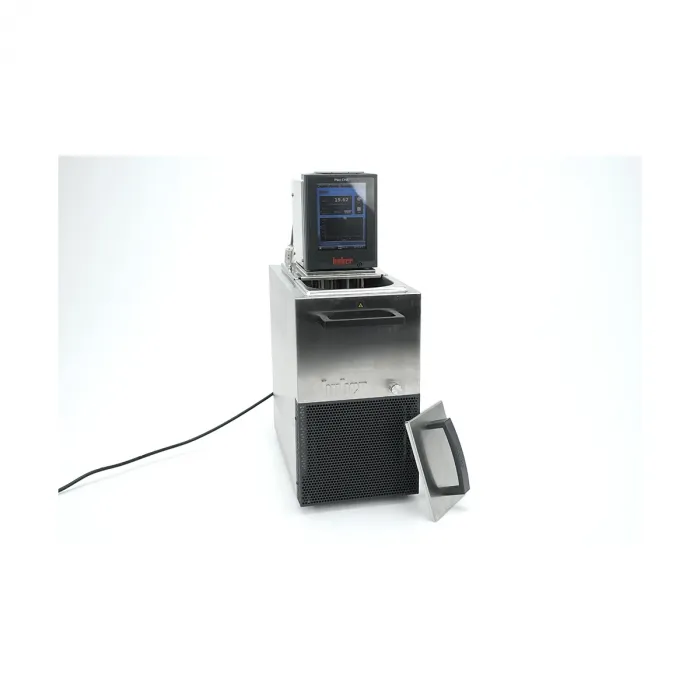

Huber K6 Pilot One Refrigerated Circulator -25°C..+200°C RS232 USB Ethernet
SKU: 8516
Manufacturer: Huber
Model: K6 Pilot ONE circulation thermostat / Refrigerated Circulator -25 °C ... + 200 °C, RS232, USB, Ethernet
Y/N: 220680/15
Description:
The Huber K6 with Pilot ONE control is a compact, powerful circulation thermostat for precise temperature control of external applications in the temperature range from -25 °C to +200 °C. This versatile device is ideal for laboratory and industrial applications in chemistry, pharmaceuticals, materials science and process development.
With its strong heating and cooling performance, combined with excellent temperature stability and dynamics, the K6 offers reliable performance even in demanding processes. The integrated circulation pump ensures uniform temperature distribution and effective heat exchange - both internally and externally.
The heart of the system is the Pilot ONE controller with 5.7-inch color touch screen, intuitive menu navigation, voice selection, real-time data display and advanced programming options. A wide range of interfaces such as RS232, USB and Ethernet enable seamless integration into modern laboratory environments or process systems.
Specifications:
Temperature range: -25 °C to +200 °C
Temperature stability: 0.02 K
Heating capacity: 2.0 kW
Cooling capacity:
- about 0.9 kW at +20 °C
- about 0.6 kW at 0 °C
- about 0.3 kW at -20 °C
Pump capacity:
- Flow rate: about 22 L/min
- Feed pressure: about 0.6 bar
Control: Pilot ONE touchscreen, programmable, multilingual
Interfaces: RS232, USB, Ethernet, SD card
Technical details:
Dimensions (W D H): 400 500 600 mm
Weight: about 40 kg
Bath volume: about 5-6 liters (closed circuit)
Power supply: 230 V, 50/60 Hz
Refrigerant: Environmentally friendly, CFC-free
Housing: Robust, laboratory-proof metal construction
Condition:
The device is in excellent cosmetic and technical condition.
