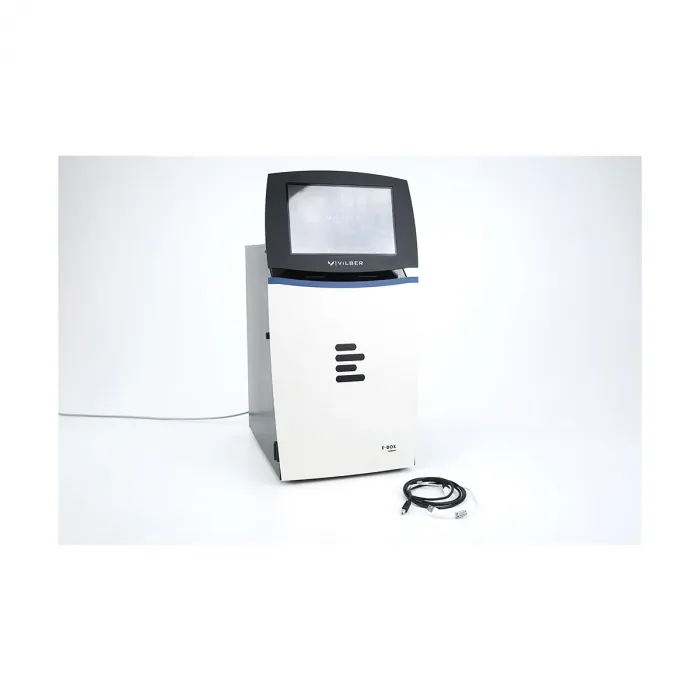

Vilber E-Box CX5 TS Standalone Gel Doc Documentation System incl. 26MX 312nm
SKU: 8672
Manufacturer: Vilber
Model: E-Box CX5 TS Standalone Gel Doc Documentation System including 26MX 312 nm transilluminator
P/N: E-Box CX5.TS (26MX)
S/N: 18 200074
2x White LED Panels (Epi-Illumination)
5x 8W - 312 nm
incl.F-590 camera filter
Description:
The Vilber E-Box CX5 TS is a powerful, stand-alone gel documentation system for high-resolution detection and analysis of DNA, RNA and protein gels. Equipped with a highly sensitive 5-megapixel camera and an integrated touch screen, the E-Box CX5 TS is ideal for laboratories that require precise and reproducible image recordings - without any external PC.
The standalone function allows full control directly from the integrated 10 touch display. Images can be taken, edited, analyzed and stored - directly on the device. The included 26MX 312 nm UV transilluminator unit provides optimal excitation of EtBr, SYBR® Green and other fluorescent dyes.
Thanks to the motorized filter wheel, autofocus and automatic exposure control, the system is extremely user-friendly and delivers crisp, high contrast images even in low fluorescent bands.
Specifications:
Camera: 5 MP CCD camera, high sensitivity, cooled
Optics: Motorized focus, automatic exposure control
Filter: Motorized filter wheel, with integrated EtBr filter (UV)
Illumination: Includes UV transilluminator 26MX, 312 nm wavelength
Display: 10 touch screen, fully integrated software for recording & analysis
Storage: Internal memory + USB port for export
Operation: Standalone, no external PC required
Applications: DNA/RNA gels, protein gels, fluorescence, dyes (e.g., EtBr, SYBR® Green, GelRed TM)
Technical details:
Dimensions (W D H): 440 470 600 mm
Weight: about 25 kg
Power supply: 100-240 V, 50/60 Hz
Connections: USB, LAN, optional printer connection
Condition:
The system is in excellent cosmetic and technical condition.
