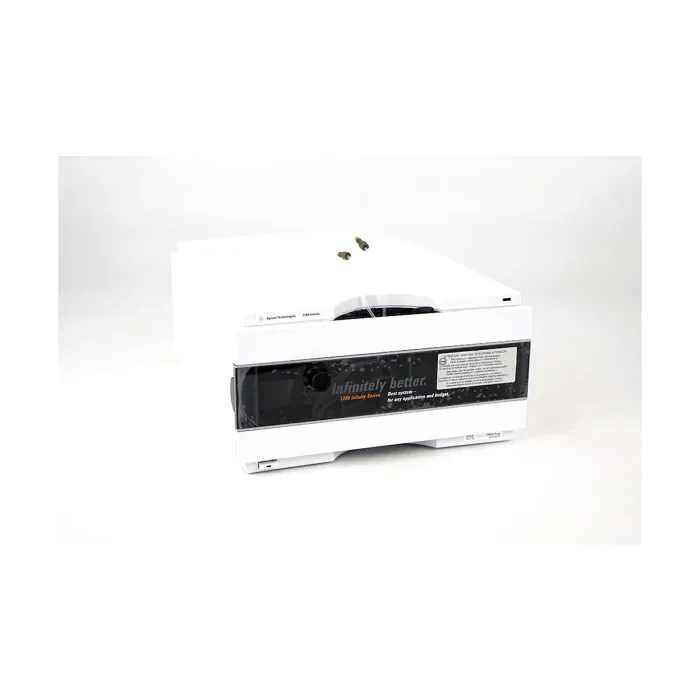

Agilent 1260 Infinity G1312B Binary Bin Pump
SKU: 7244
Manufacturer: Agilent
Model: G1312B Binary Pump

Description:

The Agilent 1260 Infinity Binary Pump is based on a series two-channel, two-piston design that incorporates all the essential functions a solvent delivery system must perform. Agilent's G1312A is designed for the highest performance and high-pressure mixing. The 1200 Series binary pump consists of two identical pumps integrated into one housing and provides gradient generation through high-pressure mixing.

Solvent metering and delivery to the high-pressure side are handled by the two pump assemblies, which can generate pressures up to 400 bar. Each pump assembly includes a pump drive, a pump head, an active inlet valve with a replaceable cartridge, and an outlet valve.

Core features:

- 5 mL/min offers universal applicability.
- Quick and easy changeover from standard to low-delay volume configuration.
- High gradient performance even at low B-% and narrow flow rates.
- Electronic attenuation control for low baseline noise.

Technical data:

Weight: 15.5 kg
Dimensions (width - depth - height): 180 x 345 x 435 mm
Flow range: 0.05°C 5.0 mL/m
Flow accuracy: ± 1% or 10 µL/min, whichever is greater
Pressure: operating range 0°C 600 bar (0°C 7800 psi) up to 5ml/min

Scope of delivery:

- Agilent 1200 Series G1312B Binary Pump
- power cable
- Instruction manual as PDF via e-mail

The device is in absolute top condition and has been 100% tested for function.
