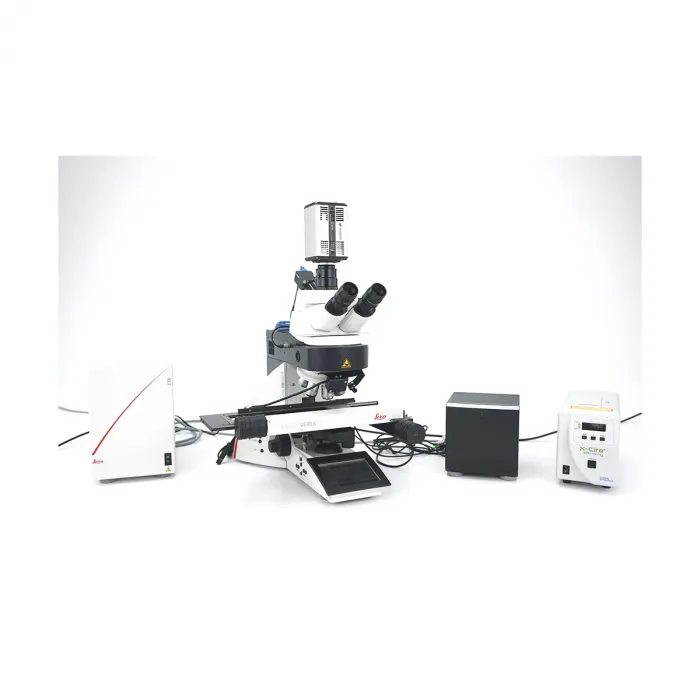

Leica Aperio Versa 8 Slide Scanner for Brightflield, Fluorescence & FISH (2016)
SKU: 8531
Manufacturer: Leica Biosystems
Model: Aperio Versa 8 Slide Scanner for Brightfield, Fluorescence & FISH (built 2016)
complete system
Tripod (DM6000B)
Tube with 2 video ports incl.:
2x HC Plan s 10x/22 (glasses) M foc (507807)
Cameras:
Point Grey GS3-u3-41C6C-C (S/N: 15420190)
Andor Zyla 5.5 USB3 sCMOS (S/N: VSC-08573)
Filter changer:
Filter cube 23FLRET 4930372 ET-GRN#1 FISH C173063
Filtercube232FL4930472 ET-GOLD FISH C179073
Filtercube232FL4930272 ET-AQUA FISH C178820
Filtercube232FL4931172 ET-RED#3 NB FISH C179885
Filtercube232FL4900972 ET-CY5 NX C180124
Filtercube232FL4900072 ET-DAPI C180053
Objective revolver:
HC PL FLUOTAR 1.25x/0.04 (506215)
HC PL FLUOTAR 5x/0.15 (506224)
HC PL FLUOTAR 10x/0.32 (506521)
HC PL FLUOTAR 20x/0.55 (506519)
HC PL APO 40x/0.85 Corr (506294)
8-speed Slide cross table with Prior Scientific control ProScan III
12V 100W halogen through light
X-Cite 120PC Q fluorescent lighting including light guide and X-Cite adapter (810-00033X)
Comprehensive operating instructions
Software CD/DVD package with Aperio Versa 8 Software / Leica Application Suite
Description:
The Leica Aperio Versa 8 is a high-resolution, automatic slide scanner for digital pathology and research. With support for brightfield, fluorescence and FISH applications, the system provides a versatile platform for digitizing histological sections in excellent image quality.
The Versa 8 features advanced camera optics, a motorized XY scanner and precise autofocus technology for crisp images at cell and tissue level. Thanks to the automatic slide changer, up to 8 slides can be scanned in one go - ideal for research facilities, core facilities and translational labs.
The system supports multiple fluorescence channel analysis and is validated for use with FISH protocols. Combined with the powerful Aperio software platform, the scanner enables easy organization, visualization and analysis of samples in digital workflow.
Specifications:
Scan modes: brightfield, fluorescence, FISH
Capacity: Up to 8 slides per pass
Camera: High-resolution scientific CCD camera
Lenses: Interchangeable, typically 20 , 40 (oil or air, depending on model)
Autofocus: Precise, laser-based focusing mechanism
Software: Compatible with Aperio ImageScope, eSlide Manager and analysis modules
Fluorescence channels: up to 5 channels (depending on configuration and filter)
Applications: histology, oncology, immunohistochemistry, FISH, cell biology, neuroscience
Technical details:
Dimensions (W D H): 600 600 600 mm
Weight: about 45 kg
Power supply: 100-240 V, 50/60 Hz
Interfaces: USB, Ethernet for network and data integration
Condition:
The device is in excellent cosmetic and technical condition.
