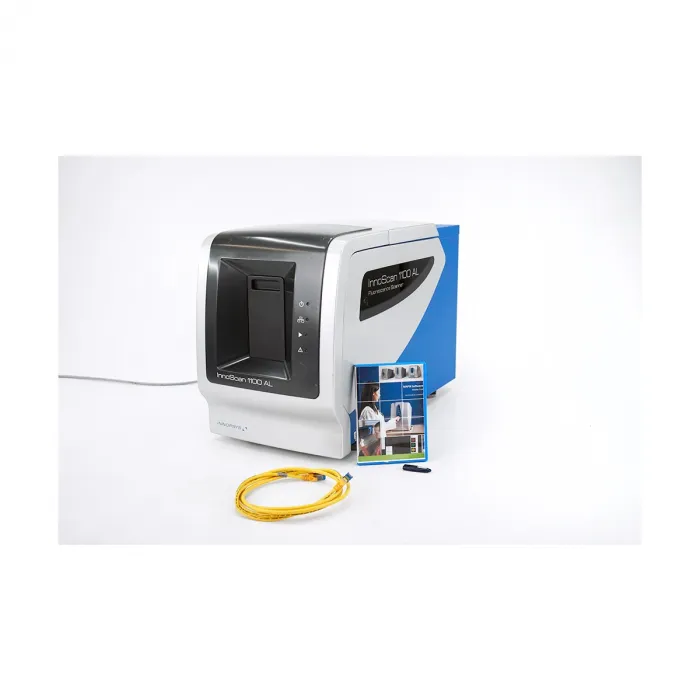

Innopsys InnoScan 1100 AL 3-Color Ultra-High Resolution Confocal Slide Scanner Imager
SKU: 9021
Manufacturer: Innopsys
Model: InnoScan 1100 AL 3-Color Ultra-High Resolution Confocal Slide Scanner
incl. software and license dongle
Description:
The Innopsys InnoScan 1100 AL is a high-precision, confocal slide scanner specifically designed for demanding fluorescence microarray analysis. With an ultra-high resolution of up to 1 µm/pixel, it offers exceptional image quality and sensitivity. Thanks to the 3-color laser technology (blue, green, red), the system enables multiplexed detection and high-precision quantification of biomolecules in applications such as genomics, proteomics and cell research.
The integrated AutoLoader (AL) function allows automatic processing of multiple glass slides, significantly increasing throughput in laboratories. The confocal optics reduce background noise and ensure outstanding signal quality, even with weak fluorescence signals.
Specifications:
Detection channels: 3-color laser (blue, green, red) for multiplexed fluorescence analysis
Maximum resolution: Up to 1 µm/pixel for detailed imaging
Confocal optics: Minimizes background signals and improves the signal-to-noise ratio
AutoLoader: Automatic loading for high-throughput screening
Dynamic range: High linear dynamic range for precise quantification
Compatible samples: DNA and protein microarrays, cell and tissue samples
Software: Intuitive control and advanced image analysis functions
Technical details:
Laser wavelengths: 488 nm (blue), 532 nm (green), 635 nm (red)
Scanning speed: High speed with customizable scanning resolution
Data export: Supports various formats for flexible analysis
Interfaces: USB and network connection for fast data transfer
Dimensions (W×D×H): Approx. 450 × 550 × 400 mm
Weight: Approx. 25 kg
Condition:
The device is in excellent cosmetic and functional condition. It has been fully tested and is ready for immediate use.
