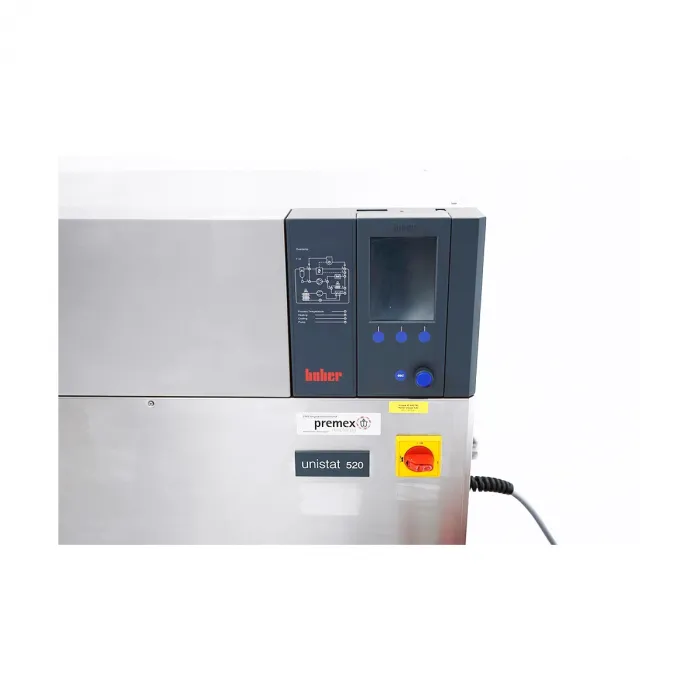

Huber Unistat 520w Circulation Thermostat -55..+250°C Dynamic Temperature Control System
SKU: 8503
Manufacturer: Huber
Model: Unistat 520w Circulation Thermostat / Dynamic temperature control system -55 °C ... +250 °C
Description:
The Huber Unistat 520w is a high-performance, dynamic temperature control system for precise temperature control in research, pilot plants and industrial processes. With an extremely wide temperature range from -55 °C to +250 °C and excellent temperature stability, this system is ideal for demanding applications such as reactor temperature control, process development and scale-up experiments.
Thanks to the proven Unistat technology, the 520w offers short heating and cooling times as well as excellent reproducibility - even with highly exothermic or endothermic reactions. The closed temperature control circuit system protects the heat transfer medium from oxidation and evaporation, reduces maintenance requirements and increases operational safety.
The integrated Pilot ONE control unit with touchscreen offers a modern, user-friendly interface with comprehensive programming, documentation and network connection functions. A wide range of interfaces such as USB, Ethernet, RS232 and SD card enable easy integration into existing systems.
Specifications:
Temperature range: -55 °C to +250 °C
Temperature stability: ±0.01 K
Heating capacity: 6 kW
Cooling capacity:
- approx. 2.5 kW at 0 °C
- approx. 1.5 kW at -40 °C
- approx. 0.5 kW at -50 °C
Pump capacity:
- Delivery rate: up to 40 L/min
- Delivery pressure: up to 1.7 bar
Pump type: Magnetically coupled centrifugal pump, adjustable
Cooling system: Water-cooled (connection to external cooling water system required)
Technical details:
Bath volume: Approx. 4-6 L (closed system)
Power supply: 400 V, 3~ (three-phase current), 50/60 Hz
Dimensions (W×D×H): Approx. 500 × 670 × 1100 mm
Weight: Approx. 150 kg
Interfaces: USB, RS232, Ethernet, SD card, optional: Modbus, Profibus, OPC UA
Display: 5.7 color touchscreen (Pilot ONE Controller)
Applications:
- Chemical and pharmaceutical process development
- Reactor temperature control (laboratory scale to pilot plant)
- Material tests
- Process engineering
- Thermodynamic investigations
Condition:
The device is in excellent cosmetic and technical condition. Ready for immediate use for precise temperature control tasks in demanding laboratory and production Environments.
