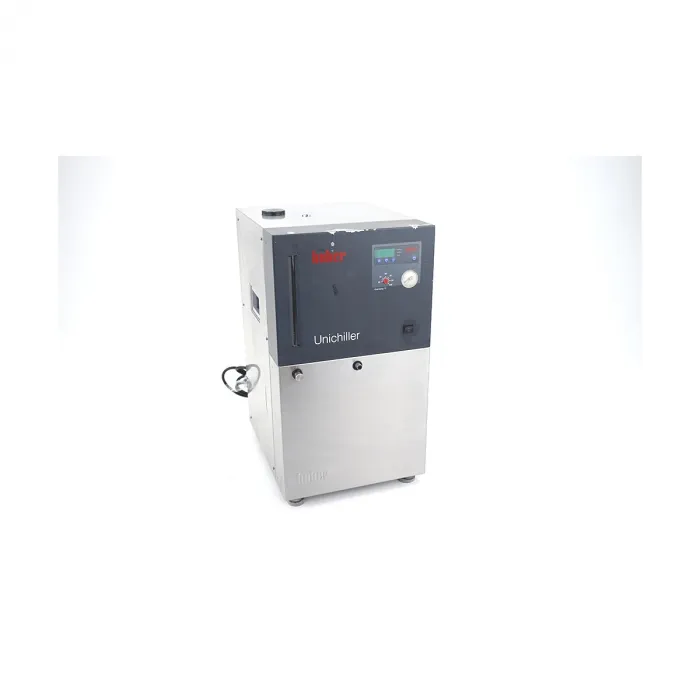

Huber Unichiller UC 015w-H Chiller Circulator -10…+100°C
SKU: 8644
Manufacturer: Huber
Model: Unichiller UC 015w-H Circulating cooler Chiller Circulator -10...+100 °C
P/N: 103103/09
Description:
The Huber Unichiller UC 015w-H is a powerful, water-cooled circulating chiller for efficient temperature control of external applications in the temperature range from -10 °C to +100 °C. The device is ideal for laboratory, pilot and production environments where constant and reliable temperature conditions are required - e.g. for reactor temperature control, sample cooling or analysis devices.
Thanks to the precise PID control, the powerful circulation pump and the energy-efficient water cooling technology, the UC 015w-H offers reliable temperature stability even in dynamic applications. The compact, robust design enables space-saving installation directly next to the process.
The intuitive control panel with digital display allows easy control and programming of setpoint, temperature curve and alarm settings.
Specifications:
Temperature range: -10 °C to +100 °C
Temperature stability: ±0.1 K
Cooling capacity: Approx. 1.5 kW at 15 °C (depending on model)
Circulation pump: Powerful pressure/suction pump, adjustable
Pump flow rate: Approx. 25 L/min
Max. Delivery pressure: Approx. 0.6 bar
Cooling: Water-cooled (external cooling water network required)
Operation: Digital display with simple menu navigation
Technical details:
Dimensions (W×D×H): Approx. 400 × 500 × 600 mm
Weight: Approx. 45 kg
Power supply: 230 V, 50/60 Hz
Connections: Inlet / outlet for temperature control liquid (standard screw connections)
Housing: Powder-coated metal, resistant to chemicals
Condition:
The appliance is in excellent cosmetic and technical condition.
