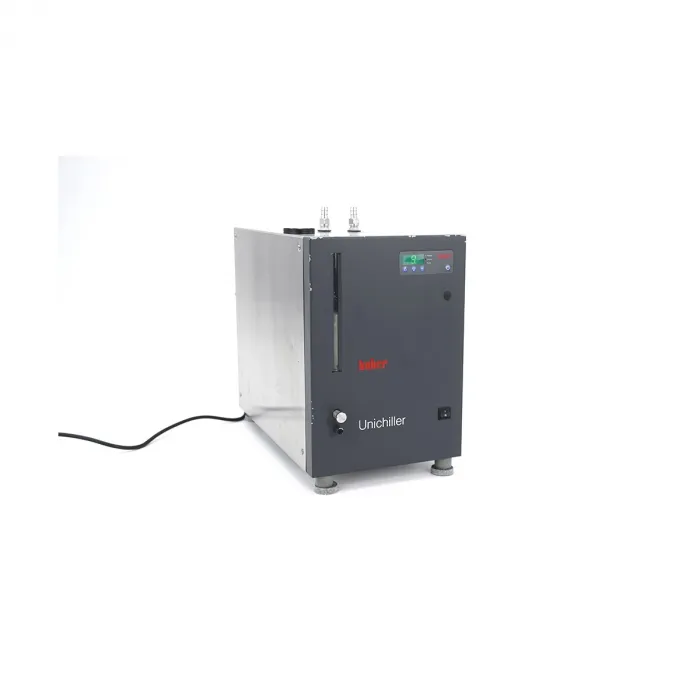

Huber Unichiller UC006 Chiller Circulator -20…+40°C
SKU: 8517
Manufacturer: Huber
Model: Unichiller UC006 recirculating cooler / Chiller Circulator -20 °C ... + 40 °C
Y/N: 115027/10
-25...+40°C
Description:
The Huber Unichiller UC006 is a compact and efficient recirculating cooler for precise temperature control of external applications in the temperature range from -20 °C to +40 °C. The unit provides reliable cooling performance with low energy consumption and is ideally suited for laboratory and industrial applications such as reactor tempering, distillation, cooling of analytical equipment or photometers.
With its powerful circulation pump and stable temperature control, the UC006 ensures constant conditions even when requirements change. The closed cooling system prevents water evaporation and contamination, ensuring low-maintenance and long-term stable use.
The intuitive control with digital display allows easy operation and monitoring of all relevant parameters. Thanks to its compact design, the device is ideal for use in confined spaces or under laboratory tables.
Specifications:
Temperature range: -20 °C to +40 °C
Temperature stability: 0.5 K
Cooling capacity:
- about 0.6 kW at 20 °C
- about 0.4 kW at 0 °C
- about 0.25 kW at -10 °C
Pump capacity:
- Flow rate: about 15 L/min
- Feed pressure: about 0.3 bar
Cooling system: air-cooled, closed circuit system
Operation: digital display with temperature display and setpoint control
Technical details:
Dimensions (W D H): 260 420 580 mm
Weight: 28 kg
Power supply: 230 V, 50/60 Hz
Connections: hose connections for supply and return
Refrigerant: CFC-free, environmentally friendly
Condition:
The device is in excellent cosmetic and technical condition.
