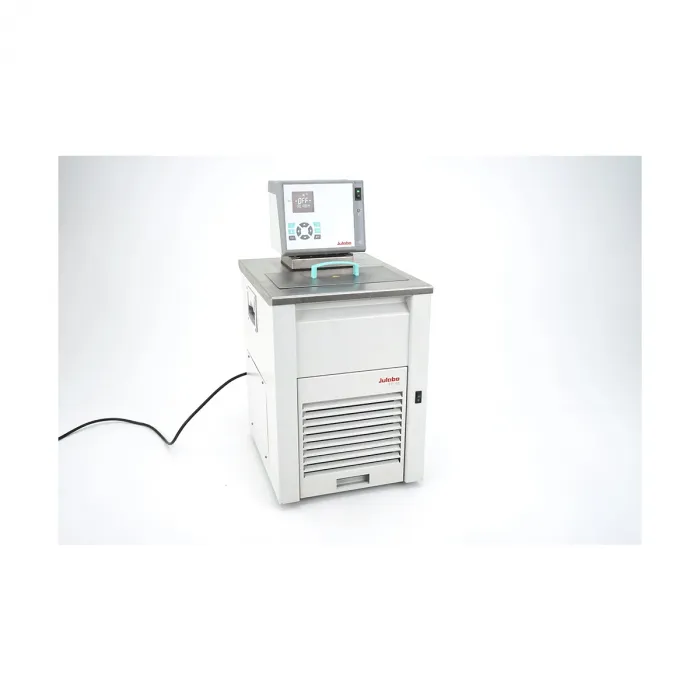

Julabo FP40-HE 16L Refrigerated Circulator -40...+200°C
SKU: 8643
Manufacturer: Julabo
Model: FP40-HE 16 L Refrigerated Circulator Refrigerated circulator -40...+200 °C
Description:
The Julabo FP40-HE is a powerful, high-precision refrigerated circulator with an extended temperature range from -40 °C to +200 °C. The device is ideal for demanding temperature control tasks in laboratories and technology - for example in chemistry, pharmaceuticals, biotechnology, materials testing or process engineering.
Equipped with a 16-liter stainless steel bath, powerful circulation pump and intelligent PID temperature control, the FP40-HE offers excellent temperature stability and fast response times. The thermostat can be used for both internal and external applications and ensures precise temperature control over a wide range.
The user-friendly control via the HE (High-Efficiency) display enables intuitive operation, programming and monitoring of all functions. Numerous interfaces make the device fully network-compatible and ready for integration into automated processes.
Specifications:
Temperature range: -40 °C to +200 °C
Temperature stability: ±0.01 °C
Heating capacity: 2 kW
Cooling capacity:
- approx. 0.9 kW at 20 °C
- approx. 0.6 kW at 0 °C
- approx. 0.2 kW at -20 °C
Pump capacity:
- Delivery rate: up to 22 L/min
- Delivery pressure: up to 0.7 bar
Bath capacity: 16 liters, stainless steel
Control: HE digital control with timer, alarm, program functions
Technical details:
Dimensions (W×D×H): Approx. 400 × 600 × 900 mm
Weight: Approx. 65 kg
Power supply: 230 V, 50/60 Hz
Interfaces: RS232, USB, optional Profibus/Modbus
Refrigerant: Environmentally friendly, CFC-free
Condition:
The appliance is in excellent cosmetic and technical condition.
