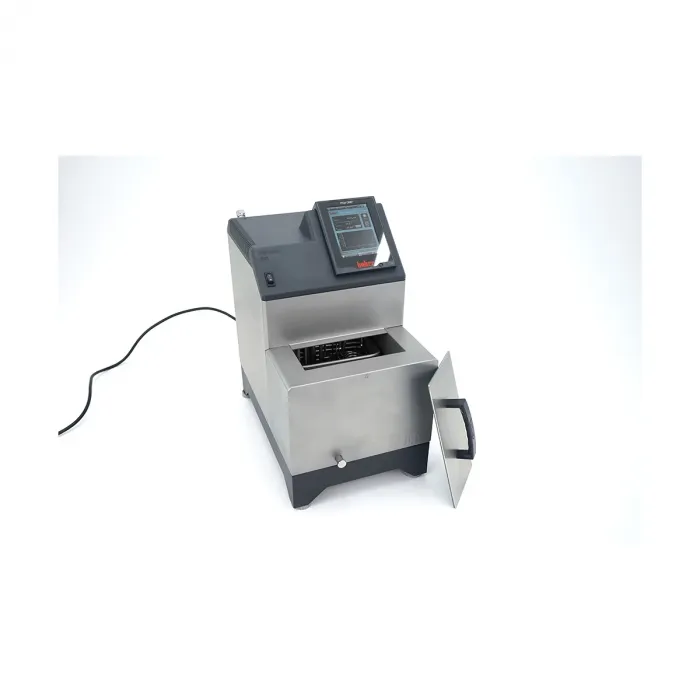

Huber Ministat 240 Refrigerated Circulator -45°C..+200°C
SKU: 8519
Manufacturer: Huber
Model: Ministat 240 refrigeration thermostat / circulation thermostat Refrigerated Circulator -45 °C ... + 200 °C
including Pilot One controller
S/N: 387104
-55...+200°C
Connections: MicroUSB, USB A, Ethernet, RS232
Description:
The Huber Ministat 240 is a compact and powerful refrigeration thermostat for exact temperature control of external, closed applications. With an extended temperature range of -45 °C to +200 °C, the device is ideal for demanding processes in research, laboratory and industry - especially reactor temperature control, process development and material testing.
Despite its compact footprint, the Ministat 240 offers strong heating and cooling performance as well as excellent temperature stability. The closed temperature control system prevents evaporation and oxidation of the heat transfer medium, which increases operational reliability and service life.
The integrated Pilot ONE controller with 5.7 colour touch screen enables intuitive operation, extensive programming and integration into digital laboratory networks via USB, RS232 or Ethernet.
Specifications:
Temperature range: -45 °C to +200 °C
Temperature stability: 0.01 K
Heating capacity: 1.5 kW
Cooling capacity:
- about 0.6 kW at +20 °C
- about 0.45 kW at 0 °C
- about 0.25 kW at -20 °C
Pump capacity:
- Flow rate: about 15 L/min
- Feed pressure: about 0.35 bar
Control: Pilot ONE touch screen with real-time display, timer, safety functions
Applications: reactor temperature control, synthesis, thermostating, calibration
Technical details:
Dimensions (W D H): 250 430 600 mm
Weight: about 48 kg
Bath volume: about 3 litres (closed system)
Power supply: 230 V, 50/60 Hz
Refrigerant: Environmentally friendly, CFC-free
Housing: Robust metal housing, suitable for laboratory use
Condition:
The device is in excellent cosmetic and technical condition.
