This price is negotiable

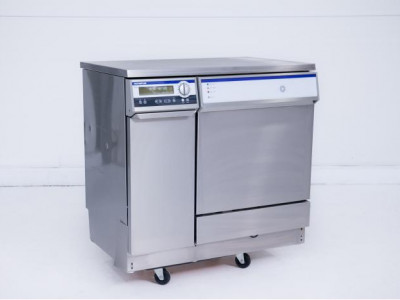

Model: ETD 4

Serial number: 00/74372446

Made in Germany

Easy-to-use endoscope channel connectors allow easy connection of any Olympus or other compatible brand of endoscope

Fast and accurate data acquisition:

Built-in magnetic-inductive robust flow sensors

Reliable operation with a full range of different endoscopes

Technical specifications:

Ability to wash endoscopes from various manufacturers:

Olympus, Pentax, Fujinon, Karl Storz

Low-temperature disinfection possible with peracetic acid 35°C

Operation in a sealed system, unit equipped with a vapour condenser

Protection against secondary contamination of the equipment after disinfection

Automatic leak check of the endoscope throughout the process

Automatic interruption of the process if endoscope leakage is detected during the process

Drying of the external and internal surfaces of the endoscopes at the end of the process with the possibility of choosing between two drying levels

Possibility of programming the various stages of the cleaning and disinfection process directly from the keyboard or control panel:

The type and stages of the decontamination processes have been programmed and validated by the manufacturer, the user can choose among several cleaning and disinfection modes

Equipped with a system to ensure high microbiological quality of the water for the final rinse process:

UV lamp and disinfection of the rinse water with PAA in low concentration

Capacity: 2 flexible endoscopes (optional up to 4 ENT endoscopes)

Routing: compatible with Olympus PAA

Measurement of dosage quantity

Temperature measurement using temperature sensors (calibratable)

Possibility of using chemicals from different manufacturers (for cleaning and disinfection):

Use of fluids recommended by the manufacturer, tested and guaranteeing the effectiveness of the decontamination process in accordance with EN ISO 15833-1 and -4

Water process: hot or cold water (drinking water ensures microbiological quality):

Max 4°dH

Conductivity >100 µS/cm

pH: 6.5-9.5

PAA process: max. 25 °C

Pump flow rate: 400 l/min

Washing chamber volume: 165 l

Included:

Power cord

Baskets for endoscopes: E601-3, E601-4

Closable basket: 14 x 21 x 5 cm

Overall dimensions of the washer: 90 x 60 x 85 cm

Weight: 133.5 KG

Power supply: 400 V / 50-60 Hz / 9.2 kW
