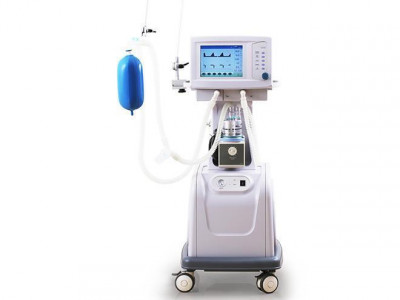

MSL New ICU ventilator MSLVM21 Technique Specifications

Pressure range 5-80 mbar

Physical specifications Rispriation Rate Range 1-99bpm (1-40bpm under SIMV)

Dimensions: 45*55*140cm I:E Range 4:1-1:8

Weight: 65kg Ptrigger Range -20-20cmH 2 O

Casters: Central brake with lock Apnea Ti Range 0-6s

Screen: 10.2 inch PEEP

Display Colour LCD Type Integrated, Electronic control

Display graphics Waveforms of P-T, F-T Range 0-30cmH 2 O

Loops P-V, F-V(optional) Alarm Limits

Screen control NEC, no dead spot at any angle Visual

No tidal volume, MV,Paw, FiO 2 limitation

O 2, Air failure, AC power failure, backup low

Air compressor specifications Audio No tidal volume, MV,Paw, FiO 2 limitation

Power AC 220V±10%, 50Hz±2% Pipeline supply

Output pressure 0.4±0.1MPa Gas configuration O 2 , Air

Noise ≦65dB Pipeline input range 280-600kPa

Leadtime within 7-30 days after payment received. Depends on availability of the product in the warehouse.
