Specifications

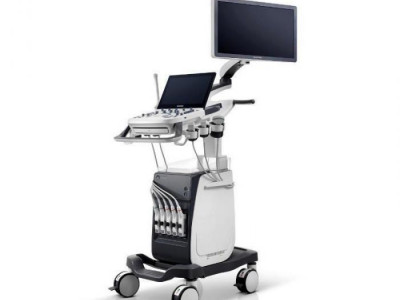

Reliable Doppler Ultrasound Device Sonoscape P9 Supplier

1 Doppler ultrasound machines Sonoscape P9 Gen​eral Specifications

1.1 Applications

Abdomen

Cephalic

OB/Gynecology

Cardiology

Peripheral vascular

Small parts

Musculoskeletal

Transvaginal

Transrectal

1.2 Doppler ultrasound machines Sonoscape P9 Available Probes

Convex array probe

Linear array probe

Phased array probe

1.3 Doppler ultrasound machines Sonoscape P9 Imaging Modes

B

THI/PHI

M

Anatomical M

CFM M

CFM

PDI/DPDI

PW

CW

TDI

TDI PW

1.4 Doppler ultrasound machines Sonoscape P9 Function and Configuration

5-band adjustable frequency in B mode (fundamental wave and harmonic wave)

μ-scan

Compound imaging

LGC (8 bands)

Tissue specific index

Image rotation

Widescan

Simultaneous mode (Triplex)

PW auto trace

Auto IMT

Scr-Zoom

B mode panoramic imaging

Biopsy guide

Vis-needle

ECG

1.5 Doppler ultrasound machines Sonoscape P9 Available Languages

Software: English, Simplified Chinese, Spanish, Russian, French, Italian, German, Norwegian, Portuguese, Polish

Key panel: English, Simplified Chinese, Spanish, Russian, French, Italian, German, Norwegian, Portuguese, Polish

User manual: English, Simplified Chinese

2 doppler ultrasound device sonoscape p9 Physical Specifications

2.1 Doppler ultrasound machines Sonoscape P9 Size and Weight

Width: approx. 751 mm

Depth: approx. 526 mm (max. depth of monitor)

Height: 1110 mm ±15 mm, lowest (lower arm and monitor in their lowest position); 1680 mm ±15 mm, highest (upper arm and monitor in their highest position)

Weight: approx. 55 kg (including the battery)

2.2 Doppler ultrasound machines Sonoscape P9 Monitor

Medical high resolution monitor

Resolution: 1920*1080

Viewing angle: 178°(horizontal), 178°(vertical)

Swivel angle: ±45°

Up/down angle: -90° to 25°

2.3 Doppler ultrasound machines Sonoscape P9 Monitor Arm

Fixed lower arm relative to holder

Left and right rotatable relative to the upper arm (rotation angle: ±112°); upper arm is adjustable towards up and down (height difference: 0 - 100 mm)

All probes are available to order

Delivery after payment within 5-7 days. The price does not include delivery
