Specifications

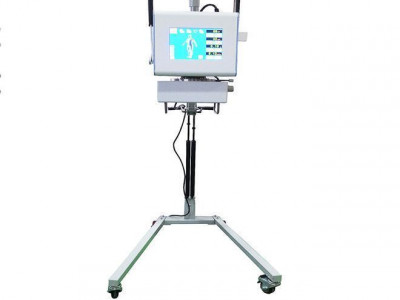

Vet Portable High Frequency X-ray Machine MSLGX01:

Fearture:
1.High frequency inverter technology is adopted to produce,output high pressure is stable,good image quality can be obtained;
2.The compact design makes it easy to cary out work in different areas and locations;
3.With three exposure control methods:.Tekecontrolhand brake/Interface button;
4.Fault self-diagnosis,self protection;
5.Wth flexible digital interface,offer SDK protocol,users can control the core programming deeply and can be suitable for different DR detectors.

Specification:

Model:MSLGX Series
Inverter frequency:≥ 30kHz
Input power type:220V ±10%, 50Hz/60Hz
Host size:370mm ×260mm×230mm
Weight:21kg
Inverter mode:PWM(Pulse width modulation)

Maximum output power:5.0kW
Power Capacity:100kV@50mA
Photography kV range:40-50kV 40-60kV 40-80kV 40- 100kV 40- 100kV 40-110kV
Photography mA range:100 mA 80 mA 63mA 50mA 40mA 32mA
mAs range:0.32-315mAs
Exposure time range:0.01-6.3s

Maximum output power:3.5kW
Power Capacity:70kV@50mA
Photography kV range:40-70kV 40-90kV 40-110kV
Photography mA range:50 mA 40 mA 32 mA
mAs range:0.32-200mAs
Exposure time range:0.01-4s

Leadtime within 7-30 days after payment received. Depends on availability of the product in the warehouse.
