Specification

Place of Origin

China

City

Guangzhou

Brand Name

MSLOCT08

Model Number

MSLOCT08

Warranty

1 Year

After-sale Service

Online technical support

Material

metal, plastic

Shelf Life

3 years

Quality Certification

ce

Instrument classification

Class II

Safety standard

GB15979-2002

Product name

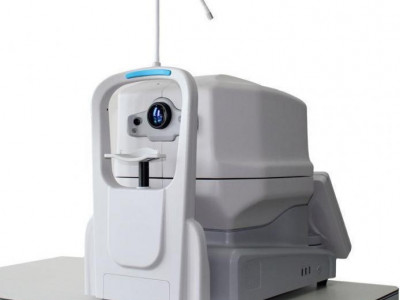

Optical Coherence Tomography

Methodology

Spectral domain OCT

Axial resolution

≤6 um (in tissue)

Transverse resolution

≤20 um (in tissue)

Scan depth

≥2.5 mm (in air)

Scan range

≥6mm

Scan speed

≥24,000 A-scans/sec, up to 36,000 A-scans/sec

Scan modes

3D, Raster, Circle

Fundus image

OCT en face

Focus adjustment

-15D to 15D

Pupil diameter

≥3mm

OCT light source：

840 nm SLD

Optical power

750 μW (at cornea)

Operation

13.3" touch screen, optional external mouse or keyboard

Power supply

100-240 V, 50/60 Hz

Dimensions

497 mm X 395 mm X 490 mm (LXWXH)

Weight

34 kg (75 Ibs)

Leadtime within 7-30 days after payment received. Depends on availability of the product in the warehouse.
