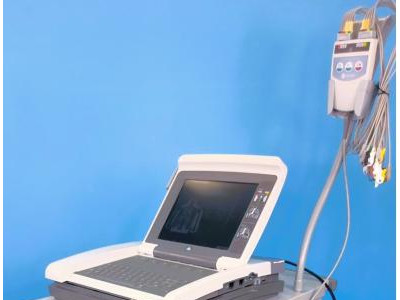

GE MAC 5500

Electrocardiograph ECG/EKG

Good Condition

TESTED FUNCTIONAL

Comes with its trolley and ECG cables, cam acquisition module, bar code scanner.

The GE MAC 5500 is an EKG/ECG system that can provide advanced and accurate electrocardiography readings. The MAC 5500 system can acquire, analyze, display, and record ECG readings for adult and pediatric patients. Offering 3, 6, 12, and 15 lead analysis. The GE MAC 5500 comes with a 10.4-inch color LCD and an alphanumeric keyboard. The system offers internal storage for up to 200 ECG readings. The ECG system can easily connect via ethernet or wireless connectivity to the GE Muse cardiology information system to help manage the patient's ECG readings.

Ethernet and wireless networking option saves time, reduces errors, and maximizes charge capture.

Hook-up advisor minimizes editing time and repeats ECG acquisitions.

Single button operation for printing, storage, and transmission.

Bar code scanner helps reduce clerical errors.

2SL ECG Analysis program with Gender-Specific software.

15-Lead ECG Analysis.

Optional risk stratification tools such as ACI-TIPI, Late Potential P-Wave Signal Averaging.

Optional stress testing capabilities.

Processing:

Instrument type: 15 lead (14 channel) microprocessor-augmented, automatic electrocardiograph.

ECG analysis frequency: 500 samples/second. (SPS)

ECG storage: 200 (maximum) on internal, non-volatile memory. Facility to archive ECG records on a removable media card. (SD card)

Digital sampling rate: 4000 samples/second/channel.

Analysis: Pediatric and Vectorcardiography. Optional: 12SL analysis, Hi-Res, and PHI-Res late potential analysis.

Pre-acquisition: Provides 10 seconds of instantaneous ECG acquisition.

Dynamic range: AC differential: ±10 mV DC offset: ±320 mV.

Resolution: 4.88 μV/LSB @ 250 sps, 1.22μV/LSB @ 500 sps.

Frequency response: –3 dB @ 0.01 to 150 Hz.

Common mode rejection: >140 dB. (123 dB with AC filter disabled.)

Input impedance: >10MΩ@ 10 Hz, defibrillator protected Patient leakage: <10 μA.

Pace detect: Orthogonal LA, LL and V6; 750 μV @ 50 μs.

Special acquisition functions: Disconnected lead detection, electrode impedance, excessive AC noise, baseline wander, and muscle tremor messages.

Communication: MAC and MUSE system compatible RS-232. Optional: Modem, LAN, FAX, wireless transmission, remote retrieval. (remote query.)

Pre-owned, was removed from hospital in working condition.
