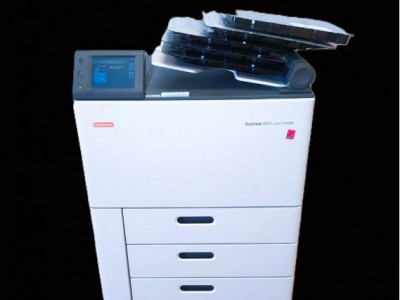

CARESTREAM DryView 6850

Laser Printer Imager

Very good condition

Fully tested

With 5 packs of films

FEATURES:

Get exceptional performance and superb image quality for diagnosis, image sharing and film archiving. This laser imager includes CR, DR, full-field digital mammography printing capabilities, and much more.

• Print up to 200 films per hour with super-sharp 650 ppi resolution

• Utilize on-demand printing with three film drawers/five film sizes

• Add an optional five-bin sorter for easy retrieval of films by modality

Superb image quality – Print every image on every film size with super-sharp 650 dpi resolution—meeting the spatial resolution needs of digital mammography. Maintain film-to-film consistency with Automatic Image Quality Control (AIQC).

Broad printing capability and added productivity – Print from CR, DR, CT, MR, US, NM, PACS, digital fluoroscopy, full-field digital mammography (FFDM), and more. Five film sizes serve multiple modalities requiring quick access to patients’ studies. True-size images and high throughput (up to 200 films per hour). Compact, versatile, and affordable solution for any radiography department.

Easy to use – Multilingual touch-screen interface with instructional video simplifies operation and training. Film cartridges load in full room light. Each cartridge holds 125 film sheets to minimize loading frequency. Optional five-bin top-mounted sorter provides quick access to desired patient films by modality.

Specs:

Technology Photothermographic (dry laser)

DRYVIEW laser imaging quality

• True laser technology

• 650 pixels per inch, 39 micron laser spot spacing

• 14-bit pixel depth architecture

Throughput

• Time to first print: 60 seconds

• Up to 200 films per hour

DryView Laser Imaging Film

• Blue or clear 7-mil polyester base

• Daylight-load film cartridges

• 125 sheets/cartridge

• Lifetime (100 years) film archivability (oncology, mammography, pediatrics, etc.)

Choice of film sizes Each of three film drawers holds any of the following sizes online:

• 14 x 17 in. (35 x 43 cm)

• 14 x 14 in. (35 x 35 cm)

• 11 x 14 in. (28 x 35 cm)

• 10 x 12 in. (25 x 30 cm)

• 8 x 10 in. (20 x 25 cm)

Options

• Film drawers: one to three film drawers are supported

• Film sorter: optional five-bin film sorter can be added (holds up to 50 film sheets in each bin)

Automatic Image Quality Control (AIQC)

• Configurable to meet user needs

• Ensures consistency from film to film

Network connectivity

• Integrated DICOM interface supports printing from DICOM print modalities

• Connect non-DICOM modalities using PACS Link Medical Image Managers

Network connection

• 10/10/1000 (supports jumbo frame) BaseT

• Ethernet connection to imager

• Network connection via CAT5 UTP cable terminating in an FJ-45 plug

DICOM SOP Classes supported*

• Basic Grayscale Print Management Meta SOP Class

• Color Print Management Meta SOP Class

• Presentation LUT SOP Class

• Basic Annotation Box SOP Class

• Verification SOP Class
