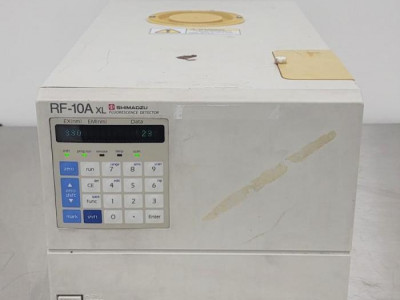

The Shimadzu RF-10AXL Fluorescence Detector, CAT# 228-35353-92, manufactured by Shimadzu, is a comprehensive, modular system ideally used with an SCL-10Avp system controller to complement any existing HPLC system. This compact unit integrates seamlessly with other Shimadzu LC-10A Series components via fiber optic communication cables for 'plug-and-play' convenience. The system boasts built-in GLP functionality, self diagnostics, maintenance information, and span calibration functionality. The detector uses a high precision Xenon lamp as a light source and features concave, blazed holographic grating monochromators with a measuring wavelength range of 200 - 650 nm, with a spectral bandwidth of 15 nm. The photomultiplier detector ensures high sensitivity. The cell has a volume of 12 L and approximately 20kgf/cm2 pressure rating as standard, with a range of available cells and inert cell options for customization. The system allows wavelength parameters to be programmed in up to 32 steps. As a used item, the unit has been verified to function as intended, with minor cosmetic blemishes. Typical applications for this equipment include fluorescence detection in chromatography, environmental testing, and pharmaceutical analysis. It is especially useful for Raman spectroscopy, drug discovery, and environmental monitoring. This versatile unit is vital for fluorescence analysis in research, pharmaceutical, and environmental laboratories. It is a crucial tool for detailed molecular analysis, environmental monitoring, and pharmaceutical research.

Key Features

• High Precision Xenon lamp as the light source
• Concave, blazed holographic grating monochromators
• Built-in GLP functionality and self diagnostics
• Photomultiplier detector for high sensitivity
• Programmable wavelength parameters

Specifications

• Light source: High Precision Xenon lamp, 150W
• Excitation/emission monochromators: Concave, blazed holographic grating monochromators, F2.4
• Measuring wavelength range: 200 - 650 nm (200-900nm option)
• Spectral bandwidth: 15 nm both in the excitation and emission sides
• Wavelength accuracy: +/- 0.2 nm
• Sensitivity: The S/N radio is 300 for the Raman line of distilled water (350nm excitation wavelength and 1.5 sec. time constant)
• Detector: Photomultiplier
• Cell (volume, pressure, material): 12 L, approx. 20kgf/cm2 as standard (2 L cell and inert cells are available as option)
• Time programming: Wavelengths parameters may be programmed in up to 32 steps

Weight

Metric: 21.32 kg
Imperial: 47 lb

Dimensions

Metric: 53.34 cm x 25.4 cm x 40.64 cm
Imperial: 21 in x 10 in x 16 in
