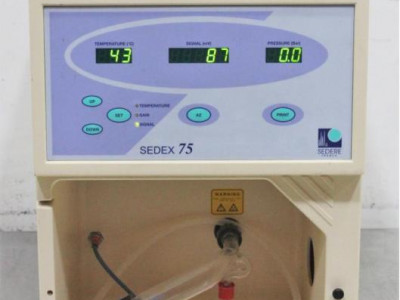

The SEDERE Sedex 75 Evaporative Light Scattering Detector (ELSD) from SEDERE France is used to detect compounds less volatile than the mobile phase in various chromatography methods. It offers high sensitivity, with detection limits as low as 5ng of Glucose. The ELSD allows for lower temperature evaporation of the mobile phase, maximizing sensitivity and repeatability. This equipment is widely used in HPLC, micro-HPLC, Supercritical Fluid Chromatography (SFC), GPC, and CCC. It is commonly employed in pharmaceutical research, biochemistry, and environmental analysis. The SEDERE Sedex 75 ELSD enhances the precision and accuracy of chromatographic analyses, making it an indispensable tool in the life sciences industry. The equipment is in a very good, used condition, and it comes with a 30-day warranty.

Key Features

• High sensitivity photomultiplier detector
• Polychromatic tungsten halogen lamp light source
• Manual, auto zero, and remote auto zero control
• Temperature range from ambient to 140°C
• Low gas consumption

Specifications

• Detection Limit: Less than 5ng of Glucose (on column), less than 800pg of phospholipid (on column), less than 100pg of C12E08 (micro-HPLC, on column)
• Flow Rate: 0.1 to 5mL/min (standard HPLC), 10 to 150L/min (micro-HPLC)
• Signal Drift: Less than 1mV/hr
• Signal Output: 0-10mV, 0-1V
• Gas Consumption: Less than 3L/min

Weight

Metric: 24.494 kg
Imperial: 54.0 lb

Dimensions

Metric: 20.32 cm x 35.56 cm x 71.12 cm
Imperial: 8.0 in x 14.0 in x 28.0 in
