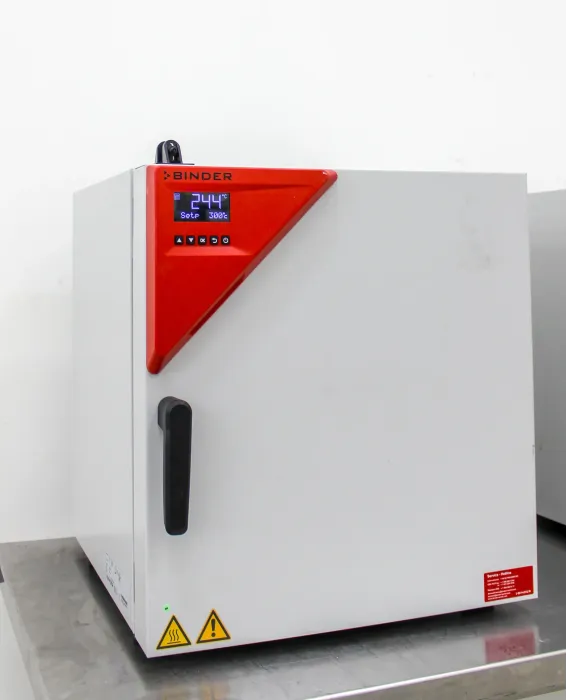

The BINDER ED 56 (version ED056UL-120V) from the Avantgarde. Line is a Gravity Convection drying and heating chamber with a capacity of 2 Cu Ft (57 L) and a temperature range from ambient +5 to 300C, requiring 120V power. This model, manufactured in 2018, has been tested to meet specifications and comes with a 30-Day Warranty, 100% Parts and Labor. The BINDER ED series Avantgarde. Line drying chamber excels in routine drying and sterilization tasks up to 300C, ensuring fast, uniform drying. The oven provides high temperature accuracy thanks to APT.lin technology, gravity convection, a controller with an LCD display, and electromechanical control of the exhaust air flap. Unique features include 2 chrome-plated racks, stackability for units up to 115 L, and a USB port for recording data. Typical applications include sample preparation, drying glassware and instruments, and heat treatment of samples in research and industrial laboratories. The oven is widely used in pharmaceutical, biotechnology, and academic research laboratories.

Technician comment
**This Oven was tested to specifications, minor stains in oven chamber. Buyer can expect same item displayed. See photos for further details.

Key Features
Capacity of 2 Cu Ft (57 L)
Temperature range from ambient +5 to 300C
120V power requirement
High temperature accuracy with APT.lin technology
Gravity convection for uniform drying
Controller with LCD display
Usable in pharmaceutical and biotechnology laboratories
2 chrome-plated racks with stackability for units up to 115 L
USB port for recording data

Specifications
Temperature range: 5 C above ambient temperature to 300C
Temperature variation at 150 C: 2.3K
Temperature fluctuation at 150 C: 0.4K
Heating-up time to 150 C: 50min
Recovery time after 30 seconds door open at 150 C: 19min
Rated Voltage: 120V
Power frequency: 60Hz
Nominal power: 1.15kW
Unit fuse: 12.5A
Chamber dimensions: 14.18in (Width) x 16.55in (Height) x 14.97in (Depth)
Interior volume: 2 cu.ft.
Permitted load: 154lbs
Load per rack: 66lbs
Energy consumption at 150 C: 180Wh/h
Number of shelves (std./max.): 2/4

Weight
Metric: 32.66 kg
Imperial: 72 lb

Dimensions
Metric: 55.88 cm x 66.55 cm x 38.0 cm
Imperial: 22.0 in x 26.2 in x 14.96 in
