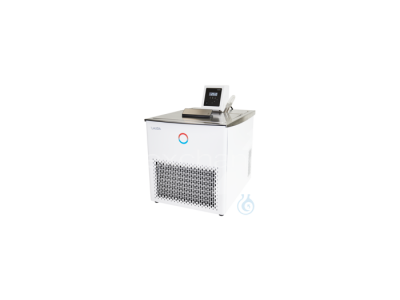

LAUDA Alpha RA 24 Refrigerated thermostat 230 V; 50 Hz bath / circulation thermostat with easy handling and integrated cooling system 1-line LED display for display of actual or setpoint User-friendly menu control and the simplest 3-button operation Full electronic continuous controller Low level and overtemperature protection for non-flammable liquids Alarm signal acoustic and visual Circulation pump with (HFCs) Power cable with Schuko plug (CEE7 / 7) Technical data (according to DIN 12876) Working temperature range -25 ° C ... 100. The temperature of the refrigerant is approx ° C Ambient temperature range 5 ° C ... 40 ° C Temperature stability ± 0.05 ° C Heating capacity 1.5 kW Cooling capacity at 20 ° C 0.43 kW Power consumption max. 1.8 kW Rated current 8.0 A Fuse T12 Pressure pump - Pressure max. 0.2 bar - flow rate max. 15 L / min bath volume min./max. 14.0 / 22.0 L Bath size (W x D x H) 350 x 277 x 160 mm Dimensions (wxdxh) 415 x 605 x 605 mm Standard accessories Bath cover Pump connection kit Short circuit hose for pump connections
