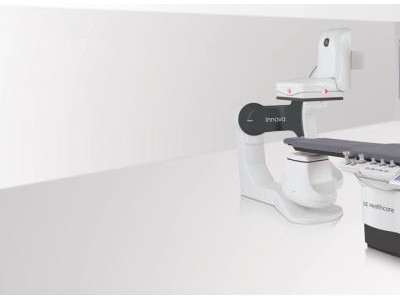

GE Innova IGS 540 (EQ-026131)
Single Plane System
Completely Digital Imaging Chain
New Style 41cm NGB 41 Digital Detector
GE Exclusive LC Positioner
3 Axis Isocentric Positioner with Floor Mounted L-Arm and offset C-arm
>> Provides Maximum Positioning Flexibility and Patient Access
100 kW High Frequency Jedi Generator with Grid Pulsed Fluoroscopy Capabilities
GE Performix 160A X-Ray tube – DOM March 2023
Innova Angiographic Collimator
Innova IQ Tilting Table
>> Weight Limit up to 204kgs/450lbs
Coolix 4100 Closed Loop Re-Circulation Tube Cooling System
Detector Conditioner
Overhead Monitor Suspension with 58” class EIZO Radforce Monitor
Tableside Controls
Innova TouchScreen Unit
Standard Innova IGS User Interface Package
Cerber Software Level

Enabled Software Options:
Cardiac & Dynamic: ON
Denoising: ON
DSA: ON
Fluoro Store: ON
Innova Chase: ON
IQ Sharpness: ON
InRoom Browser: ON
MPPS: ON
Storage Commitment: ON
Worklist: ON

Simultaneous Sub/No Sub display, InnovaCentral Touch Screen, Motorized Table, Fluoro UPS, Stenosis Analysis, Left Ventricle Analysis, Spin, Innova 3D, Sub 3D, Innova CT, StentViz, Blended Roadmap, Fast Link, Augmented Calibration, DoseMap
Includes GE AW 4.7 Workstation
HP Z440 Computer

Enabled Software Options:
GE Remote Update, 3DXR 3D CT, Volume Viewer, Preprocessing / AutoLaunch, VesselIQ Xpress, AutoBone Xpress, Volume Viewer Innova, Flight Plan for Liver, Reporting Tool, Vision 2, TrackVision 2, Stereo3D, FlightPlan for Embolization
