Biometra Minigel-Twin System for 2 gels (1.0 mm)
For many years, the Minigel Twin system has stood for reliability, easy handling, and high specimen separation accuracy. The low buffer requirement reduces operating costs.
Description

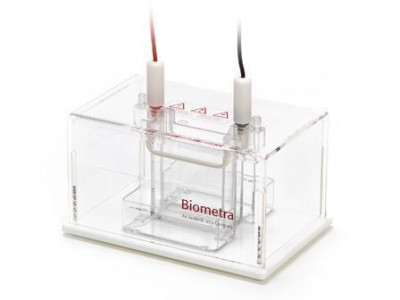

The Biometra Minigel-Twin System is a vertical PAGE electrophoresis system. The robust design ensures easy handling and long-term reliability for the precise separation of nucleic acids and proteins.
Robust double-gel system with sophisticated design
High selectivity despite short running times
Platinum electrodes and glass plates with fixed glass spacer
Gel size: 8.6 cm x 7.7 cm
Separation distance: 7.7 cm
Excellent sealing system (profiled silicone seal) ensures user-friendly, leak-proof casting of polyacrylamide gels
Max buffer requirement: 440 mL
Scope of delivery
Electrophoresis basic body including buffer chambers
2 glass plates with fixed 1 mm glass spacers (10,5 cm x 9,8 cm, W x L)
2 notched glass plates (10,5 cm x 9,8 cm, W x L)
2 combs with 10 wells, 1 mm
2 silicone seals, 1 mm
6 retaining clips
Safety lid
User Manual

Note:
The system is compatible with:
the polymerized gels of the Eco-Mini
most pre-cast finishing gels (max. 11 cm x 11 cm)
Technical Data

Dimension (width x depth x height): 236 mm x 160 mm x 182 mm; Weight (netto): 2 kg

Software not included
Order number 846-010-100
