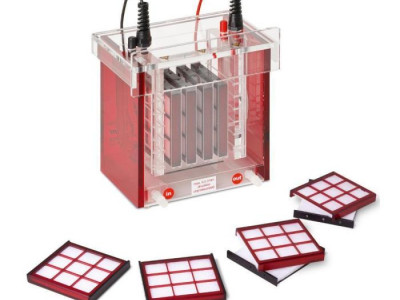

Tankblot Eco-Mini system EBC for up to 4 gels
The Biometra Tank-Blot is a flexible system which ensures fast and maximum transfer efficiency for gentle blotting of large and temperature-sensitive proteins.
Description
The Tankblot Eco-Mini Blotting System EBC is ideal for the efficient and reliable transfer of biological molecules, such as nucleic acids and proteins, from a gel matrix to a membrane. The ultra-pure platinum electrodes are specially arranged on the side walls of the buffer tank to ensure uniform and reproducible transfer over a wide range of molecular weights.
Simultaneous blotting of up to 4 gels
Max. gel size: 9.5 cm x 9.2 cm
Special electrode configuration (platinum electrodes) for a homogeneous electric field
High user comfort through color-coded blot cassettes
The integrated cooling option (water circulation system) guarantees constant buffer temperature
Total buffer volume: 2.1 L
Scope of delivery
Tankblot Eco-Mini with buffer chamber EBC (with cooling option)
Blotting module for up to four gels
4 cassettes (color coded)
8 foam inserts for the cassettes
Bigfoot acrylic safety lid with automatic power interruption enables safe and space-saving storage of the lid

Note:
Buffer tank EBC is compatible with electrophoresis module 846-017-175!

The system is compatible with:
gels of the minigel twin
with pre-cast gels (max. gel size 9.5 cm x 9.2 cm)
Technical Data

Dimension (width x depth x height): 210 mm x 150 mm x 250 mm; Weight (netto): 2.5 kg

Software not included
Order number 846-018-100
