Biometra Eco-Mini system EBC for 2 gels (1.0 mm thick)
The line is modular composed and allows an individual set-up. A specially designed casting stand provides for convenient gel casting. Glass plates with fixed glass spacers ensure perfect alignment and easy-to use, leak-free casting.
Description
The Biometra Eco-Mini System EBC is robust, modular tank system for vertical PAGE electrophoresis and blotting applications. The robust design provides for ease of use and longtime reliability for a exceptional separation of nucleic acids and proteins even with complex samples.
Tank-style model for electrophoresis and blotting (Buffer tank EBC)
Extra strong glass plates with fixed spacers for long-term durability
Gel size: 9.4 cm x 8 cm
Separation distance: 8 cm
Platinum electrodes
Double-gel system for simultaneous separation of up to 4 gels (using special divider plates)
Optional blot module to extend the application range available
Efficient cooling option to ensure high separation resolution
Scope of delivery

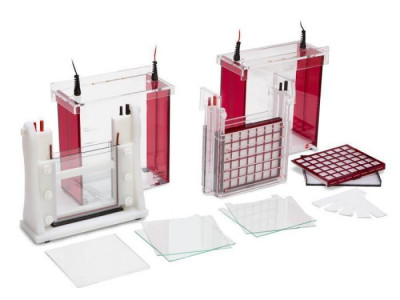

Biometra Eco-Mini System EBC for 2 gels
Buffer chamber EBC with cooling option (integrated water circulation system for connection to an external cooling circuit)
Bigfoot acrylic safety lid with automatic power interruption enables safe and space-saving storage of the lid
2 glass plates with fixed 1 mm glass spacers (11.0 x 10.0 cm W x L)
2 notched glass plates (11.0 x 10.0 cm W x L)
1 dummy plate
2 combs with 10 wells, 1 mm
Leak-proof gel casting stand

Note:
Buffer tank EBC is compatible with blot module 846-018-105!

The system is compatible with:
The glass plates of the Minigel-Twin
A choice of pre-cast gels (max. 11 x 11 cm)
Technical Data

Dimension (width x depth x height): 210 mm x 150 mm x 265 mm;

Software not included
Order number 846-017-104
