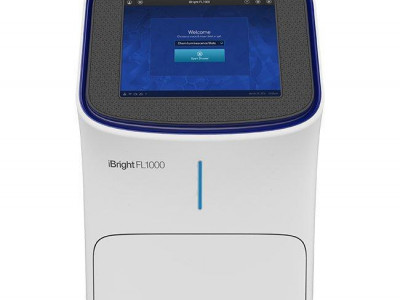

The Invitrogen™ iBright™ FL1000 Imager is a powerful, easy-to-use western blot and gel documentation system. The iBright FL1000 Imager provides sensitive, streamlined, multimode image capture. The iBright FL1000 connects to the user through a large capacitive touch screen interface and intelligently designed software to provide stunningly easy western blot and gel imaging.
The iBright FL1000 Imager revolutionizes image acquisition of western blots and gels. The compact benchtop instrument is equipped with five fluorescent channels: three in the visible fluorescence range (RGB) and two in the near infrared (NIR) fluorescence range, which enables compatibility with a wide range of fluorescence dyes. Multiplex up to four channels simultaneously in a single western blot.
The iBright FL1000 provides fast, accurate, chemiluminescent detection using an advanced 9.1 MP CCD camera to capture chemiluminescent images with high sensitivity and dynamic range. The incorporated advanced CCD technology results in greater to or equal sensitivity to X-ray film and provides enhanced dynamic range and signal linearity.
Capture stained nucleic acid gels (e.g. ethidium bromide, SYBR green, SYBR safe etc.) using the integrated environmentally friendly long-life green LED-based transilluminator, which provides a light source without harmful UV rays or mercury waste from UV transilluminator bulbs.
The built-in 12.1 inch LCD touch screen features multi-touch technology that enables pinch-and-zoom, pan-to-move images, and swipe-to-switch between channels and overlays. Acquired images can be easily exported through USB ports, local network drive connection, or Wi-Fi (optional).
Specifications
Camera Type : 9.1 MP CCD
Product Type: iBright Imager
For Use With (Application): Western blotting and Gel documentation
Model: FL1000
Display: 12.1 inch LCD touch screen
Software: Thermo Fisher Cloud
Order number A32748
