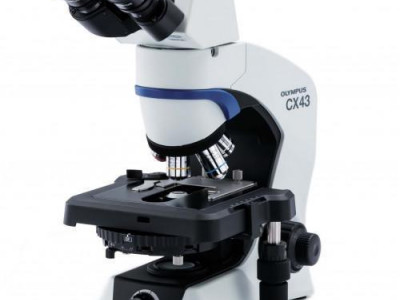

CX43 Biological Microscope Designed for Ease-of-Use from the User's Perspective
Features
Upright microscope frame for transmitted and reflected light observations. Integrated ransmitted LED illumination, low-positioned quintuple nosepiece, mechanical stage (211 x 154 mm, travelling range 76 x 52 mm) with right handle, low drive control, stage lock pin and specimen holder for one slide. Built-in universal abbe condenser with NA 1.25, aperture stop, 7 position turret: BF(4X - 100X), 2X, DF, Ph1, Ph2, Ph3, FL with shutter. Coaxial coarse and fine focus, complete stroke 15 mm, fine stroke 300 µm/rotation, graduation 2.5 Μm. Torque adjustment for coarse focus knob and focus limit stopper. Power cable (035425 UYCP) is required. Including wide range power supply (AC 100 – 240 V 50 / 60 Hz 0.4A), Allen wrench and manual.
