BIO-RAD/伯乐-低位全裙边96孔PCR板黑色



概述

Pkg of 50, black shell/white well PCR plate for higher fluorescent signals, rigid 2-component design



描述

Use these Hard-Shell Plates for reliable performance in all PCR and real-time PCR applications. The white wells provide an increase in fluorescent signal strength. The patented two-component design is specifically engineered to withstand the stresses of thermal cycling.
Additional benefits include:

• Superior stability and flatness allow precise positioning and robotic handling
• Sturdy plate design is ideal for heat sealing methods
• Warp-resistant feature provides durability during automation, high-speed centrifugation, and storage (even at –80°C)
• User-readable bar code options for convenient sample tracking in high-throughput settings
• White alphanumeric labeling for easy well identification
• Footprint and well spacing designed to match ANSI/SBS standard dimensions
• Composition helps prevent DNA binding
• Polypropylene resin allows superior well-to-well uniformity for reliable and reproducible real-time qPCR results
• Certified to be free of DNase, RNase, and human genomic DNA
• Maximum volume is up to 200 μl

Available Formats
Color-coded shell options with white wells — available in white (HSP-9655), blue (HSP-9635), and green (HSP-9645) shells.

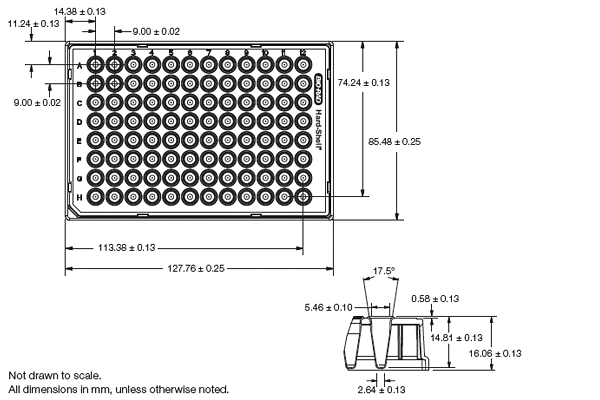

Plate Dimensions

Microplate Dimensions	Hard-Shell® Low-Profile 96-Well Skirted PCR Plates (HSP-9xxx)
Length at base plane	127.76 mm
Width at base plane	85.48 mm
Height overall	16.06 mm
Well depth	14.81 mm
Well diameter at opening	5.46 mm
Well diameter at bottom of conical section	2.64 mm
Well volume	200 μl
Well spacing	9.00 mm
Well angle	17.5°
Well offset
Left edge to well A1	14.38 mm
Top edge to well A1	11.24 mm
Left edge to H12	113.38 mm
Top edge to H12	74.24 mm


Additional Plate Formats Available


• Clear-well option — available in white (HSP-9601), red (HSP-9611), yellow (HSP-9621), blue (HSP-9631), green (HSP-9641), and black (HSP-9661) shells
• Low-cost, user-readable bar code option for convenient database tracking — available with clear (HSP-9901) or white (HSP-9955) wells
• Black shell/black well plate option (HSP-9666)

More Information
In addition to Hard-Shell® low-profile thin-wall 96-well skirted PCR plates, Bio-Rad offers a range of 96-well plates and other plastic consumables to suit your PCR needs.

技术指标

孔/管格式
96-well
孔/管尺寸
Low
缘格式
Full-skirted
Barcoded PCR plate
No
Compatible instruments, Bio-Rad
CFX96™, DNA Engine®, DNA Engine Opticon®, and Chromo4™ PCR systems, and series 1000 and PTC-100 thermal cyclers
Compatible instruments, Eppendorf
Mastercycler PCR system series
Well/tube color
White
