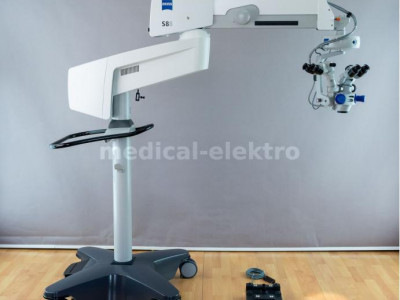

Used, refurbished, electrically controlled ophthamology microscope Zeiss OPMI Visu 150 on a S88 floor stand.

This microscope is fully functional and in very good condition.

We sell equipment which is tested several times. We check and fix all the parts that require it. To be sure, we test our devices once more before shipment to the customer.

ACCESSORIES:

- OPMI Visu Optics

- Zeiss S88 floor stand

- Stereo-CO-Observation Tube

- Footswitch

- X-Y coupling

- Red Reflex

- GG 475 Filter

- KK 40 Filter

- Handgrips with turning function for the release of the magnetic brakes of the suspension system

OPTIONAL:

- Video System

TECHNICAL SPECIFICATIONS:

Electrically controlled microscope:

- Smooth movement of microscope arms (magnetic clutches)

- Smooth adjustment of zoom and focus via footswitch

- Smooth light adjustment

- X-Y coupling

Parameters:

- Zoom adjustment from 3,5x to 20x

- Magnification of the eyepieces:

- doctor: 10x

- assist: 10x

- Inclinable binocular tube 0° - 180° (Doctor)

- Inclined binocular tube (Assist) 45°

- Objective lens f = 200 mm APO

- XY: Tour of 40 mm x 40 mm with automatic centering

- Microscope tilt angle: 15°/-90°

- Illumination system:

- 6° - illumination can be continously faded in. This allows the illumination intensity in the surgical field to be adjusted continously, without changing the color of light

- 2° and -2° - An additional illumination system produces an intensive red reflex even when the eye is centered. The angle of illumination can be switched from 2° to -2°

- Aperture selector:

- Retro-illumination contrast-enhancing stop - this stop reduces the straylight reflected from the sclera

- Retinal protection device - this device ensures total eclipsing of the pupil, preventing light from entering into patients eye

- Filter selection knob:

- UV1 GG 475 Filter: to protect the patients eye during surgery against unnecessary (blue) radiation (retinal injury)

- KK 40 Filter: to increase the color temperature

- Halogen light source with fiber optic

- Back-up lamp module with halogen lamp

- Main illumination: Halogen 12V/100W

- Emergency lamp: Halogen 12V/100W

- Power supply: 115/230 V / 50-60 Hz

- Weight: approx. 230 kg

Dimensions:

- Height:

- min: 187 cm

- max: 218 cm

- Max. distance from the objective lens to the column: 130 cm

- Base of the stand: 80 cm x 80 cm
