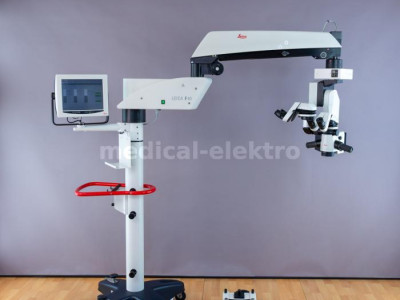

Used, refurbished, electrically controlled microscope Leica M820 for ophthalmology on a F40 floor stand.

This microscope is fully functional and in very good condition.

We sell equipment which is tested several times. We check and fix all the parts that require it. To be sure, we test our devices once more before shipment to the customer.

ACCESSORIES:

• Leica Ottoflex: Red Reflex

• F40 Floor Stand

• Leica Ultra Low (Doctor)

• Leica Ultra Low (Assist)

• Control unit with touch screen

• Footswitch

Optional:

• Video system

TECHNICAL SPECIFICATIONS:

Electrically controlled microscope:

• The suspension arm permits almost effortless positioning of the surgical microscope

• Smooth adjustment of zoom and focus

• Smooth adjustment of zoom and focus displacement speed

• Tilt: 15°/-50°

• XY coupling

Parameters:

• Zoom adjustment: from 3,3x to 19,6x

• Magnification of the eyepieces:

  • Doctor: 10x

  • Assist: 10x

• Doctors binocular tube Leica Ultra Low with adjustable angle from 10 to 50 degrees

• Assist binocular tube Leica Ultra Low with adjustable angle from 10 to 50 degrees

• Objective: Leica OptiChrome™ F= 250mm / WD=225mm (Working Distance)

• XY coupling with automatic reset

• Focus with automatic reset

• Adjustable light intensity

• Back-up lamp module with halogen lamp

• Main illumination: Halogen 50W/12V

• Emergency lamp: Halogen 50W/12V

• Power supply: 90–265 V AC, 50/60 Hz

Dimensions:

• Height of the microscope:

  • min: 195 cm

  • max: 233 cm

• The maximum distance from the objective lens to the column: 150 cm

• Base of the stand: 64 x 64 cm

• Weight: approx 350 kg
