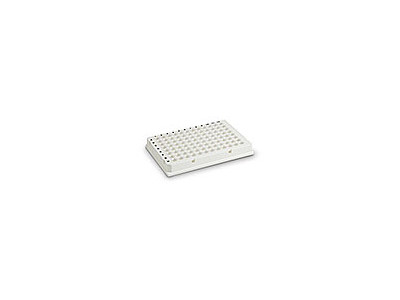

Hard-Shell® High-Profile 96-孔半

Hard-Shell^® 96-Well PCR Plates, high profile, semi skirted, clear/clear #HSS9601
Hard-Shell® High-Profile 96-孔半裙边PCR板
产品介绍：
上海恒斐生物提供Hard-Shell® High-Profile 96孔半裙边PCR板，由两部分刚性设计组成，板体和孔都是白色透明的，适合大多数PCR仪，测序仪等。Hard-Shell 96孔PCR板在热循环和机械操作中能够承受更大压力。两个具有专利的设计提供更好的平稳性，可以确保自动化操作时的精确定位。孔深20.75mm可以满足大多数热循环，实时定量PCR检测系统以及DNA测序。裙边印刷有黑色字母，清晰可视，方便确定样品位置。Hard-Shell® 96孔半裙边PCR板经检测无DNase, RNase和人DNA。

产品性能：
• 反应体积5–125 µl (最大350 µl)
• 完全规格一致的孔减少光学检测时孔间差异性
• 裙边无倾斜改善机械自动操作和表面标记
• 黑色字母印刷容易确定对应小孔位置
• Hard-Shell® 96- well PCR板经测试无DNase, RNase和人DNA
• 透明小孔可以提高荧光信号强度

Hard-Shell® High-Profile 96-Well Semi-Skirted PCR Plates English Description:
Hard-Shell 96-Well Semi-Skirted PCR Plates are specifically designed to withstand the stresses of thermal cycling and robotic handling. The patented* two-component design provides superior stability and flatness, allowing precise positioning for automation. The full-height (20.75 mm) wells fit most thermal cyclers, real-time PCR detection systems, and DNA sequencers.

Key Features and Benefits

• Reaction volumes of 5–125 µl (350 µl maximum)
• Extremely uniform wells reduce well-to-well variability in optical assays, such as those used in real-time PCR
• Warp-free half-height skirt for improved robotic handling and labeling surface
• Black lettering for easy well identification
• Process sampling and testing to ensure plates are free of DNase, RNase, and human DNA

Options

• White-well option for increased fluorescent signal strength
• Color-coded skirt option with clear wells
• Low-cost, user-readable bar code option for convenient database tracking

Plate Dimensions

Microplate Dimensions	Hard-Shell® High-Profile 96-Well Semi-Skirted PCR Plates (HSS-9xxx)
Length at top plane	127.76 mm
Width at top plane	85.47 mm
Height overall	20.75 mm
Well depth	19.85 mm
Well diameter at opening	5.50 mm
Well diameter at bottom of conical section	2.69 mm
Well volume	350 μl
Well spacing	9.00 mm
Well angle	17.5°
Well offset
Left edge to well A1	14.37 mm
Top edge to well A1	11.23 mm
Left edge to H12	113.37 mm
Top edge to H12	74.23 mm

* Hard-Shell plates are covered by one or more of the following U.S. patents or their foreign counterparts owned by Eppendorf AG: U.S. Patent Numbers 7,347,977; 6,340,589; and 6,528,302.
