德国pco.dicam C1 LT 16位像增强器sCMOS

德国PCO公司是专业生产高速相机，超高速相机和高性能相机的公司。众多的著名科研机构，工业，大学，军事单位都在使用该公司的产品。pco.dicam C1 LT 16位像增强器相机 采用25mm直径大小的像增强器 ,采用S20 材料,配搭一个16位的sCMOS成像模块，相机具备16 bit 动态范围，230万像素，卓越信噪比和单光子探测能力。门控时间可达51ns, 双曝光快门间隔时间300ns ,帧率120帧/秒， 相机通过高速序列光纤数据连接系统至PC。相机可以通过光或电子触发 。广州市元奥仪器作为德国PCO公司高速相机的中国区域核心授权代理商，热情为各位客户提供产品的方案设计与报价。

---

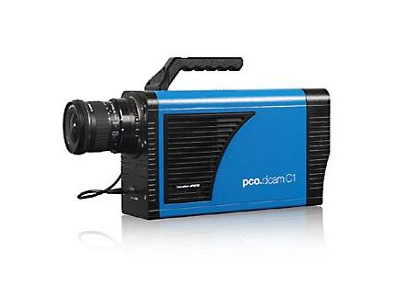

pco.dicam C1 LT
intensified 16 bit sCMOS camera
In case your application does not challenge the absolute technical limits in intensified imaging we have developed the pco.dicam C1 LT. This intensified sCMOS camera system grants you full access to true optical gated imaging.
The pco.dicam C1 LT is a budget friendly alternative to the standard and UHS models. At the same time, it is still based on the proven technology of the pco.dicam C1 platform. Adapted from the high-end models is the optical coupling of the 18 mm image intensifier with S20 photo cathode to the 16 bit sCMOS sensor via an efficient tandem lens. Single photons are detected using exposure times down to 51 ns with up to 120 fps at full 2.3 MPixel resolution.
The 10G fiber optic data interface (Camera Link HS) guarantees you uncompressed and secure data transfer. With the latest standard of high-performance data interfaces, you can bridge long distances via fiber optic cable.

---

注：产品信息若有变更恕不另行通知 / 德国PCO公司高速相机中国区域核心授权代理商---元奥仪器

广州市元奥仪器有限公司（www.gzyaco.com)
