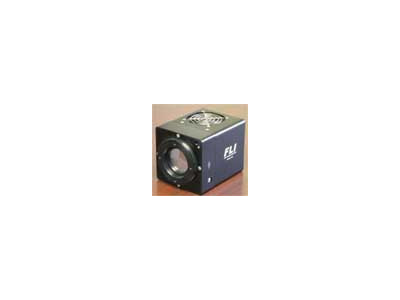

美国FLI高级制冷CCDMicroLine ML4240-1
| MicroLine ML4240-1-BI-65 |
| |
| Camera Specifications |
| |
| Interface: | USB 2.0 | |
| Digital Resolution: | 16-bit | |
| Maximum Download Speed: | 4 MHz |
| Typical System Noise: | 9-10 e- RMS @ 1 MHz |
| Typical Maximum Cooling: | 50 Deg C |
| Typical Dark Current: | |
| Temperature Stability: | 0.1 Deg C |
| CCD to Flange Distance: | 30.23 mm |
| Operating Environment: | -30 Deg C to 45 Deg C, 10% to 90% noncondensing relative humidity |
| Power: | 12 v |
| Shutter: | 65mm |
| Remote Triggering: | Yes |
| Shutter mtbf: | 1000000 |
| CCD Grades Available: | 1 |
| |
| Sensor Specifications |
| |
| CCD: | CCD42-40-1-368 | | |
| Sensor MFR: | E2V |
| Array Size: | 2048 x 2048 |
| CCD Type: | Back Illuminated |
| Color/Monochrome: | Monochrome |
| Coating Type: | Broad Band |
| Pixel Size: | 13.5 μm |
| Mega Pixels: | 4.2 |
| Sensor Diagonal: | 39.1 |
| Linerar Full Well: | 100,000 e- |
| Anti Blooming: | None |
| Peak Quantum Efficiency: | 0.92 |
| |
| |
