NP0302BOX NuPAGE™ 10% Bis-Tris Protein Gels, 1.0 mm, 12-well 10 gels (1 box)
NP0316BOX NuPAGE™ 10% Bis-Tris Protein Gels, 1.5 mm, 15-well 10 gels (1 box)
描述

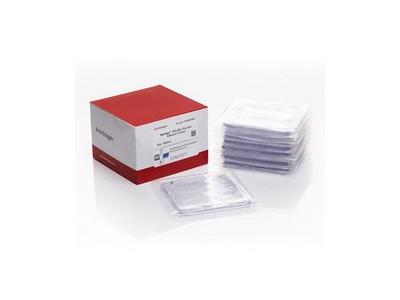

Invitrogen NuPAGE Bis-Tris protein gels are precast polyacrylamide gels that provide broad molecular weight protein separation with high resolution and sample integrity. These precast gels are ideal for applications where protein integrity is crucial. Unlike traditional Tris-glycine gels, NuPAGE Bis-Tris gels have a neutral pH environment that minimizes protein modifications. Use NuPAGE Bis-Tris gels for preparing proteins for sequencing, mass spectrometry, and any other techniques where protein integrity is important. Also use NuPAGE gels to provide optimal results during day-to-day use.Learn more about our NuPAGE Bis-Tris gels >
View migration charts ›
Features of NuPAGE Bis-Tris gels:
• Better protein integrity—optimized sample preparation process preserves your proteins
• Wide ranges of molecular weight separation—select the right gel and running buffer to get the optimal separation of your proteins
• Faster run times—get separation of your proteins in as little as 35 minutes
• Longer shelf life—NuPAGE Bis-Tris gels can be stored for at least 12 months at room temperature
Choose the right NuPAGE Bis-Tris gel for your protein separation
Obtain optimal separation of your proteins by choosing the right combination of gel and running buffer. NuPAGE Bis-Tris protein gels come in four polyacrylamide concentrations: 8%, 10%, 12%, and a 4–12% gradient. Gels come in two sizes: mini (8 cm x 8 cm) or midi (8.7 cm x 13.3 cm) and either 1.0 mm (mini and midi gels) or 1.5 mm (mini gel format only) in thickness. NuPAGE Bis-Tris gels also come in multiple well formats.
NuPAGE Bis-Tris gels are formulated for denaturing gel electrophoresis applications. For optimal sample preparation, use the NuPAGE LDS Sample Buffer and NuPAGE Sample Reducing Agent. Use NuPAGE Antioxidant in the running buffer to maintain the reduced state of the proteins during the run and to allow maximum band sharpness. The gels can be run using NuPAGE MES SDS Running Buffer to better resolve small proteins or NuPAGE MOPS SDS Running Buffer to resolve medium- to large-size proteins.
For transfer of proteins to a membrane, we recommend using NuPAGE Transfer Buffer for traditional wet transfer using the Mini Blot Module or XCell II Blot Module. Alternatively, rapid semi-dry transfer can be done using the Invitrogen Power Blotter or rapid dry transfer using the iBlot 2 Gel Transfer Device.
规格
| Gel Percentage: | 10 % |
|---|---|
| Wells: | 15 wells |
| Gel Type: | Bis-Tris Gel |
| Separation Range: | 15 to 260 kDa (MOPS buffer), 3.5 to 160 kDa (MES buffer) |
| Gel Size: | Mini (8 cm x 8 cm) |
| Well Format: | 1D Well |
| Thickness: | 1.5 mm |
| Product Line: | Novex™, NuPAGE® |
| For Use With (Equipment): | Mini Gel Tank, XCell SureLock™ Mini |
| Mode of Separation: | Molecular Weight |
| Product Size: | 10 gels (1 box) |
| Quantity: | 10 gels |
| Sample Loading Volume: | up to 25 µL |
| System: | NuPAGE® Novex® |
| Shipping Condition: | Room Temperature |
