1．*内置样品篮有效直径：ø37mm
2．*内置样品篮有效高度：300mm*
3．*工作流体：水， 水/乙二醇，乙醇，乙醇/蓖麻油
4．*最大工作压力：900 MPa (9000 bar, 130,500 psi)
5．*压力腔体构造：双壁高压腔体，柱塞压力构造.
6．温度范围：-20°C 到+90°C
7．加热/制冷系统：热交换夹套.
8．关闭装置：快速释放, 1/8th 转向制动板.
9．预充电式电荷泵：STANSTED AO9512W
10．柱塞驱动泵：STANSTED TC10/1212H
11．达到最大压力时间：约3分钟
12．*缓变率调节：300 MPa /min 到10 MPa/min 升压和降压
13．压力测量：内置压力传感器
14．压力控制：数显式电子控制模块
15．温度测量：'T' 形热电偶 (2 off) 1 个固定资, 1 个可拆卸
16．控制逻辑：PLC (Mitsubishi 'F' series)
17．压力模块占地面积：1.25m x 0.6m
18．重量：380 Kg
19．电压：1 kW
20．电源：400V 3ph 50 Hz(or agreed alternative)
21．空气压缩机：5 barg min, 10 barg max.consumption 150 Nl/cycle
22．冷水/热水循环系统：-10到90度

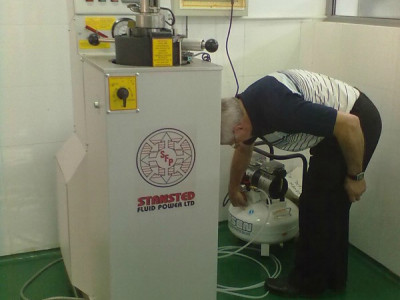

'FOODLAB' model S-FL-850-9-W Principal Specification
- Usable diameter inside product basket:ø37mm
- Usable height inside product basket:300mm*
- Working fluids:Water, water/glycol, ethanol , ethanol/castor oil
- Maximum working pressure:900 MPa (9000 bar, 130,500 psi)
- Pressure vessel construction:Duplex barrel, plunger press construction.
- Temperature range:-20°C to +90°C
- Heating/Cooling system:Circulation of temperature controlled fluid through jacket.(Heating system not included.Cooling system not included.)
- Closure mechanism:Quick release, 1/8th turn with locking plate.High lift style
- Pre-charge pump:STANSTED AO9512W
- Plunger drive pump:STANSTED TC10/1212H
- Time to max pressure:3 minutes (approx.)
- Ramp Rate adjustment: 300 MPa /min to 10 MPa/min pressurising and decompressing, approximate adjustments.
- Pressure measurement:Strain gauge transducer on drive hydraulic circuit calibrated to indicate high pressure
- Pressure control:Electronic control module with integral digital display
- Temperature Measurement: 'T' type thermocouple (2 off) 1 fixed, 1 demountable**
- Control logic:PLC (Mitsubishi 'F' series)
- Foot print press module:1.25m x 0.6m
- Weight : 380 Kg
- Electrical Power:1 kW
- Electrical Supply:400V 3ph 50 Hz (or agreed alternative)
- Compressed air/gas:5 barg min, 10 barg max.consumption 150 Nl/cycle
