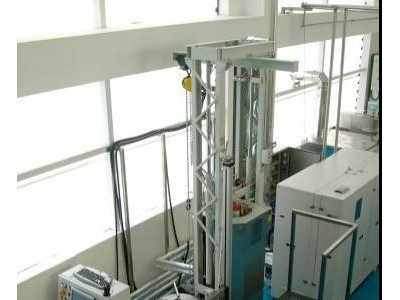

Specification Summary
Vessel Bore：Ø110 mm1
Vessel loading basket internal bore：Ø105 mm1
Vessel Length：625mm1
Vessel loading basket internal length：590mm1
Working fluid：Propylene Glycol water2
Max. Working Pressure：800 MPa
Vessel Construction：Mantle barrel, breech closure/ compound barrel
Operating Temperature Range：-20°C +130°C
Heating SystemCirculated fluid
Cooling systemCirculated fluid (not included, optionally available)
Closure Handling：Hydraulically Assisted breech, high lift type
Priming Pumping System：Stansted 085W-01 Converter
HP Pumping System：Hydraulically driven intensifier
Time to pressure： minimum90s3
Variable rate100s to 600s
Dwell at Pressure：0.1 sec.~ 999 minutes
Repeat Cycles：0-10
Decompression System：4stage, fully automatic
Pressure Measurement：Strain Gauge Transducer
Pressure Indicator/Controller：Digital with electronic control
Temperature measurement：'T' Type thermocouple,Probe PositionAdjustable in work zone
Additional Telemetry3 penetrations (thermocouple/signal wires/electrodes)
Temperature indicator：Digital
Depressurisation rate：Adjustable
Product Basket：Supplied
Heating system：Hot fluid circulation
Suitable for heating vessel：from ambient to +110°C
Cooling system：Suitable for cooling vessel from ambient to - 20°C (Optional)
Control Logic：PLC linked to PC
PLCMitsubishi Fx
PCPentium
SCADA packageHEXATECH SCAN 1000 customised to system
SCADA functionProcess set up: pressures, temperatures, ramps, and
dwells Graphic interface with process data displayed,Alarm warnings,
Pressure, & temperature Vs time graphic (and output plot)
Control Console Positioning：0m to 10m from press module
Floor Area Press：1.25m x 1.25m
Floor Area Console：1.2m x 0.8m
Floor Area auxiliaries module：2.5m x 1.5m
System Weight：6500 Kg approx.
System interconnection：Umbilical quick release electrical cables between modules.
Rigid steel connection tube to pressure vessel module
Flexibles with quick release from pressure vessel module
Power Consumption：50 kW approx.
Electrical Supply：380V 50 Hz 3ph N + E (or agreed alternative)
Compressed air：5 barg (75 psig) min 300 Nl (10 scfm) per cycle
Testing： WorksProof Pressure Test / Autofrettage
Functional Performance tests to system specification
Commissioning Functional Performance tests to system specification
Documentation：Test Certificates, CE Certificate,Operation manuals,Maintenance instructions
General Assembly drawings,Spares parts list
