英诺德INNOTEG SAMPLING CASE 气体采样器

英诺德INNOTEG SAMPLING CASE 气体采样器

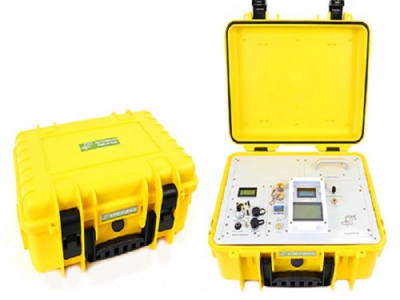

Sampling Case气体采样器是一种采集VOCs样品的便携式自动采样装置，与Needle trap动态捕集针技术或热吸附管联用，用于挥发性有机物VOCs分析。
用户通过设定采样体积，采样流速即可实现自动采集气体样品。 Sampling Case 气体采样器和Needle trap动态捕集针相连，采样器自动采集气体样品中的挥发性有机物到动态捕集针或热脱附管中。应用于环境，食品，植物，临床呼吸等不同行业VOCs采样，不仅可用于现场采样和临床采样，还可以便携式带到野外采样。

● 采样体积：10ml-10000ml;

● 采用MFC(电子流量控制)精确控制,流速范围: 1ml/min-50ml/min或5ml/min-250ml/min

● 多种型号供选择，适用于不同种类的前处理采样技术；

● 采样模式：

— 直接大气采样(Models XS,S,L,XL,B)

— 超压采样(Models S,L,XL)

— 顶空采样(Models L, XL)

— 辅助气动态顶空采样(ModelsXL)

— 临床呼吸采样(Models B)

● 电源: 锂充电电源，24V，10Ah电池
● 充电：110-230V AC，50/60 HZ，2A
● 自带真空泵，LCD显示
● 尺寸（W*D*H mm）：340×295×150 mm (Models XS,S,B)；470×357×176 mm (Model L and XL)
● 重量：约4 kg (Model µESK)，5 kg (Model Stirrer)，6 kg（Models XS,S），约10 kg（Model X），约11 kg（Model XL,B）

应用领域：
应用于环境，食品，植物，临床呼吸等不同行业

The Sampling Case gas sampler is a portable automatic sampling device for VOCs sample collection, combined with Needle trap dynamic capture needle technology or thermal adsorption tube, for VOCs analysis of volatile organic compounds.
Users can automatically collect gas samples by setting the sampling volume and sampling flow rate. The gas sampler is connected to the Needle trap dynamic capture needle, and the sampler automatically collects the volatile organic compounds in the gas sample into the dynamic capture needle or thermal desorption tube. Applied to environmental, food, plants, clinical respiratory and other different industries VOCs sampling, not only can be used for on-site sampling and clinical sampling, but also portable to the field sampling.
● Sampling volume: 10 ml – 10000 ml
● Electronic MFC : 1 ml/min – 50 ml/min or 5 ml/min – 250 ml/min
● Varieties of models are available for different types of sample preparation techniques
● Sampling Mode:
Ambient Air Sampling (Models XS,S,L,XL,B), Process Sampling(Models S,L,XL), HS sampling(Models L ,XL), Dynamic HS sampling(Models L ,XL), Dynamic HS sampling with external gas(Models L, XL), Purge & Trap sampling(Models XL), Purge & Trap sampling with external purge gas(Models XL), clinical breathing sampling (Models B)
● Power supply: LiPo-Ion Battery, 24 V DC, 10 Ah
● Charging station: 110 - 230 V AC, 50/60 Hz, 2 A
● Vacuum pump, LCD display
● Dimensions (W*D*H mm):
340mm x D295mm x H150mm (Models XS, S, B, Stirrer and µESK)
W470mm x D357mm x H176mm (Models L and XL)
● Weight: approx. 4 kg (Model µESK), approx. 5 kg (Model Stirrer), approx. 6 kg (Models XS and S), approx. 10 kg (Model X), approx. 11 kg (Models XL and B)
