PowerPac™ Basic 基础电源

描述

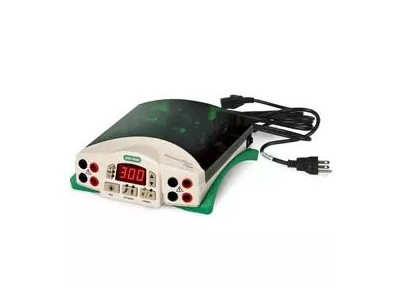

Use the PowerPac Basic Power Supply for applications such as mini and midi vertical gel and submerged horizontal electrophoresis, and blotting using the Mini Trans-Blot^® Cell. The power supply is fully programmable for either constant current or voltage, and either timed or untimed.
Features include:

• Pause mode for editing run parameters, or stopping and resuming the run
• Power failure detection in timed mode; when power returns run will complete
• Automatic detection of rapid changes in resistance, and no load conditions
• Compact and stackable
• Flip-down legs to change viewing angle

To prevent damage to electrophoresis cells, the PowerPac Basic Power Supply has automatic crossover. When the set limit of the nonconstant parameter (either voltage or current, depending on settings) is reached, and the power capability of the unit is not exceeded, the power supply will make the nonconstant parameter the new constant parameter.
In addition to the PowerPac Basic Power Supply, other power supplies include:

• PowerPac Universal Power Supply — for a broad range of applications
• PowerPac HC High-Current Power Supply — for high current applications including western blotting
• PowerPac HV High Voltage Power Supply — for high voltage applications including IEF and DNA sequencing

Related Products

• Protein Gels
• Mini-PROTEAN^® Tetra Electrophoresis Cells

Related Categories

• Western Blotting
• Protein Electrophoresis and Blotting
• Nucleic Acid Electrophoresis and Blotting

Supporting Documents and Resources

• PowerPac Basic Power Supply Instruction Manual
• Protein Electrophoresis Guide

Related Applications

• Protein Electrophoresis
• Western Blotting



技术指标

输出技术指标
10–300 V, fully adjustable in 1 V steps
4–400 mA, fully adjustable in 1 mA steps
75 W (maximum)
输出类型
Constant voltage or constant current with automatic crossover
输出终端
4 pair recessed banana jacks in parallel
计时器控制
1 min–99 hr 59 min, fully adjustable
暂停/恢复功能
Yes
显示屏
3-digit LED
操作条件
0–40°C;
安全法规遵从性
EN61010
安全特性
No-load detection; rapid resistance change detection, ground leak detection, overload/short circuit detection, overvoltage protection, over-temperature protection
输入保护
Fuse on hot and neutral
Dimensions (W x D x H), cm/in
21 x 24.5 x 6.5/8.3 x 9.6 x 2.6
Weight, kg/lb
1.1/2.4
