Bio-Rad Mini-PROTEAN® Tetra蛋白电

描述

Use the Mini-PROTEAN Tetra vertical electrophoresis system to cast and run 1–4 mini gels.

• Run Mini-PROTEAN precast gels, Ready Gel^® precast gels, or handcast polyacrylamide gels
• Handcasting set for gels 1.0 mm thick

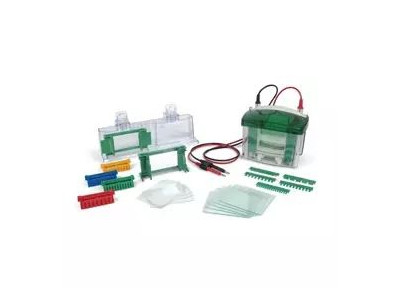

This protein electrophoresis system includes:

• Tank, lid with power cables, electrode assembly
• Mini cell buffer dam
• 2 casting stands with 4 casting frames
• 5 short plates and 5 spacer plates with integrated 1.0 mm spacers
• Five 10-well combs
• Five gel releasers (165-3320)

The Mini-PROTEAN Tetra cell eliminates tedious assembly procedures and has a patented sealing mechanism* that prevents assembly errors during handcasting.

Note: To run 1–4 gels, please order a 4-gel cell or order a 2-gel cell and the optional Mini-PROTEAN Tetra companion running module (165-8038).

Related Products

View our complete line of Mini-PROTEAN Tetra cells and accessories for additional options in protein electrophoresis systems.

We offer a full selection of polyacrylamide gel reagents including high-purity acrylamide solutions and powders for handcasting gels.

* U.S. patent 6,436,262

技术指标

凝胶数
1–4
Cell (tank and lid with power cables)
1
Companion module (to run up to 4 gels)
1
10-well combs
5
1.0 mm spacer plates (5 plates per box)
1 box
Short plates (5 plates per box)
1 box
Casting stands
2
Casting frames
4
预制胶
Mini-PROTEAN or Ready Gel^® precast gels
手灌胶
Handcast using Mini-PROTEAN glass plates
2 块凝胶的缓冲液总体积，ml
800
4 块凝胶的缓冲液总体积，ml
1,000
推荐的电源
PowerPac™ Basic, PowerPac HC (high current), PowerPac HV (high voltage), or PowerPac Universal
Typical run time for SDS-PAGE
35–45 min (at 200 V constant)
凝胶格式
Mini
Buffer dam
1
