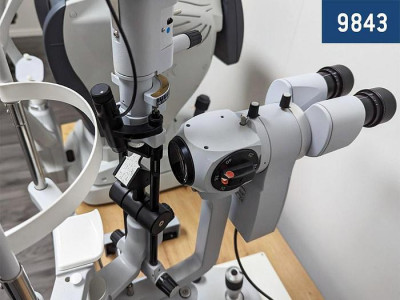

Type Galilean converging binocular microscope
• Magnification 5-position rotating drum lens (SL-9900 5x)
• Continuous (SL-9900 Zoom)
• 12.5x eyepiece (SL-9900 5x)
• Dioptric adjustment of the eyepieces ± 8 D
• Convergence 6°
• Total magnification 6 x – 10 x – 16 x – 25 x – 40 x (SL-9900 5x), 7 to 30 x (SL-9900 Zoom)
• Field of view 41 to 5.7 mm (SL-9900 5x), 30 to 7.4 mm (SL-9900 Zoom)
• Adjustable pupillary distance 50 mm to 80 mm
• Integrated Yellow barrier filter
Lighting system:
• LED type
• Intensity 248,000 LUX, continuously adjustable
• Slot height 1 to 12 mm continuously
• Slot width 0 to 12 mm continuously
• Integrated diffuse filter
• Background lighting Only in Digital Vision HR version
• Continuous 180° slot rotation
• Working distance 80 mm
• Luminous attachment point on articulated arm
• Blue, Red, Gray, Green filters (Red free)
• LED lighting with continuously adjustable intensity
• Horizontal defocus Up to 20°
• Vertical defocus 0° – 5° – 10° – 15° – 20°
Digitization:
• Sony Fast Sensor CCD sensor
• Resolution 1392 x 1040 pixels
• Frequency 11 images / second
• Phoenix software (not supplied)
• Image processing Contrast, Range, Filters, etc.
• Cup / disc ratio measurements
• Length measurement
• Measurement of the tear prism
