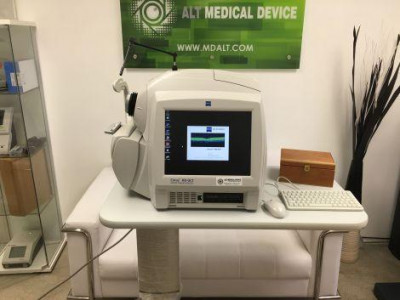

Zeiss Cirrus Spectral Domain OCT
This device is in excellent working condition with 6 month warranty.
Software version 6.0
Device is complete and includes the following;
• Power table
• Verification Tool
• Keyboard/Mouse
• User's Manual (PDF)
• Fixation LED
Device has been calibrated and operating to factory specifications.
Manufacturers description:
Cirrus HD-OCT is the first choice OCT for the full spectrum of patient care. With built-in Line Scanning Ophthalmoscope (LSO) in addition to the OCT engine, provides maximum diagnostic power and patient throughput.
Cirrus Enhanced HD Raster Scans are second to none. Capture highly dense data cubes for all the detail you need for analyses and B-scans that help identify even the most subtle pathology.
With world-class ZEISS optics and knowledge from over a decade of experience in OCT, Cirrus captures spectacular images second to none. Rather than image averaging, Cirrus uses Selective Pixel Profiling™ to optimize data at each pixel. Judge the results for yourself.
Technical Specifications:
OCT imaging
Methodology: Spectral domain OCT
Optical source: Superluminescent diode (SLD), 840 nm
Scan speed: 27,000 A-scans per second
A-scan depth: 2.0 mm (in tissue), 1024 points
Axial resolution: 5 μm (in tissue)
Transverse resolution: 15 μm (in tissue)
Fundus Imaging
Methodology: Line scanning ophthalmoscope
Live fundus image: During alignment and during, OCT scan
Optical source: Superluminescent diode (SLD), 750 nm
Field of view: 36 degrees W x 30 degrees H
Frame rate: >20 Hz
Transverse resolution: 25 μm (in tissue)
Iris Imaging
Methodology: CCD camera
Resolution: 1280 x 1024
Live iris: image During alignment
Electrical, Physical and Environmental
Weight: 83 lbs (38 kg)
Dimensions of Instrument: 26L x 17W x 21H (in), 65L x 44W x 53H (cm)
Dimensions of Table: 39L x 22W (in), 99L x 56W (cm)
Fixation: Internal, external
Internal fixation focus adjustment: -20D to +20D (diopters)
Input devices: Keyboard, mouse
Electrical rating (115V): Single Phase, 100-120V~ systems:50/60Hz, 5A
Fuse rating (115V): T 5A 250V
Electrical rating (230V): Single Phase, 220-240V~ systems:50/60 Hz, 2.5A
Fuse rating (230V): T 5A 250V
Temperature (transport and storage): –40º to +70º C
Relative humidity: (transport 10% to 100%, including condensation and storage)
Atmospheric pressure: (transport 500 hPa to 1060 hPa and storage)
Temperature (operation): +10º to +35º C
Relative humidity (operation): 30% to 75%, excluding condensation
Atmospheric Pressure (operation): 700 hPa to 1060 hPa
