Used, perfect technical condition,
German production,
Power supply: 230 V,
Frequency: 50/60 Hz,

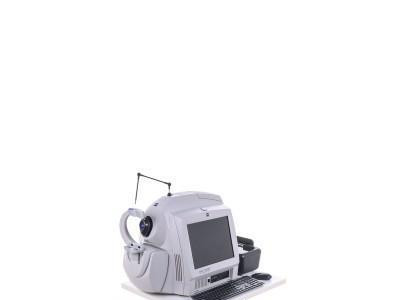

CARL ZEISS Cirrus HD-OCT 4000
enables examination of the posterior and anterior part of the eye at an extremely fine spatial scale without surgical biopsy or even eye contact. Cirrus HD-OCT builds on and enhances the retinal imaging technology first introduced with ZEISS Stratus OCT. HD-OCT stands for high-resolution optical coherence tomography,
Using advanced optical coherence tomography spectral imaging technology, Cirrus HD-OCT collects OCT data approximately 70 times faster (27,000 vs. 400 A-scans per second) and better resolution (5 μm vs. ~10 μm axial resolution in tissue) compared to first-generation OCT technology. Cirrus acquires entire cubes of OCT image data, composed of hundreds of line scans, in about the same time it takes Stratus to acquire a six-line scan. You can view these data cubes in three planes or through three dimensions, giving you access to a large amount of retinal imaging data in a single scan,
Features:
RNFL thickness analysis,
3D volume rendering,
Automatic focusing,
Segmentation layer editor,
Macular normative data,
Analysis of macular changes,
Macular reports,
Progress analysis,
Technical data:
HD-OCT imaging:
Methodology: spectral domain OCT,
Optical source: superluminescent diode (SLD),
Optical power 840 nm: less 725 μW at the cornea,
Scanning speed: 27,000 A-scans per second,
A-scan depth: 2.0 mm (in tissue), 1024 points,
Axial resolution: 5 μm (in tissue),
Transverse resolution: 15 μm (in tissue),
Ocular fundus imaging:
Methodology: line-scanning ophthalmoscope,
Ocular fundus image: during alignment and during OCT scanning,
Optical source: superluminescent diode (SLD),
750 nm optical power: <1.5 mW in the cornea,
Field of view: 36° (W) x 30° (H),
Frame rate: more 20 Hz,
Transverse resolution: 25 μm (in tissue),
Iris imaging method:
CCD camera,
Resolution: 1280 x 1024,
Study of the thickness of the anterior segment of the eye,
Internal focus: -20D to + 20D (diopters),
Integrated 15 (inches) color display,
Built-in DVD-ROM RW drive (recorder),
Built-in hard drive with internal memory for 80000 scans,
The device has 6 USB ports,
Device software in German language,
Included:
CIRRUS HD-OCT 4000,
EPSON B-300 color inkjet printer,
Wired keyboard and mouse,
Original Carl Zeiss electric height adjustment table:
Height adjustment in the range: 64.5 - 93 cm,
Full documentation with instruction manual in German,
User manual in Polish (PDF),
Weight of the device itself: 38 kg,
Dimensions of the device: 65 L x 44 W x 53 H cm,
Overall dimensions: 106 x 70 x 119.5/148 cm,
Has a current Technical Passport issued,
Warranty:
6 months for domestic market - Poland,
1 month for the international market,
Financing option (Poland only): Installments, Leasing, Loan,
